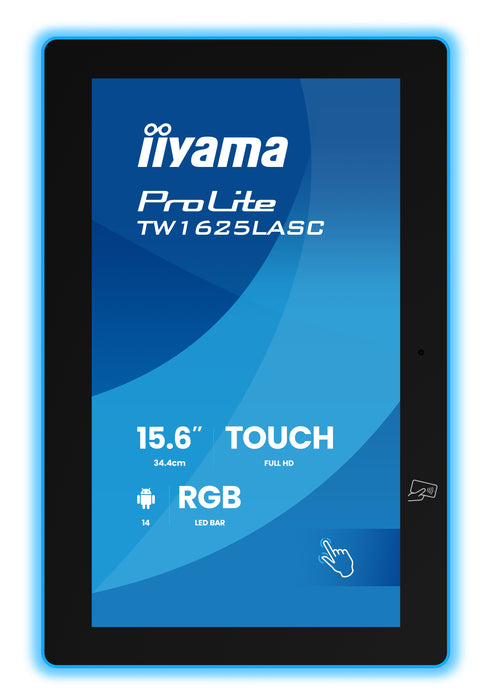

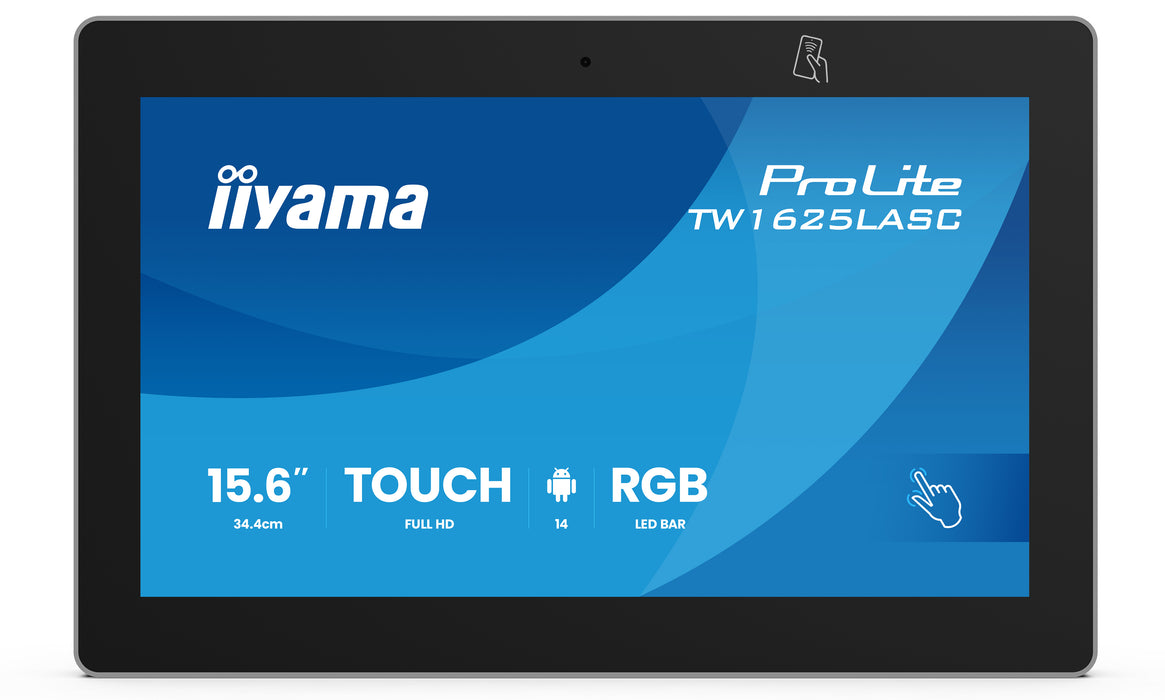

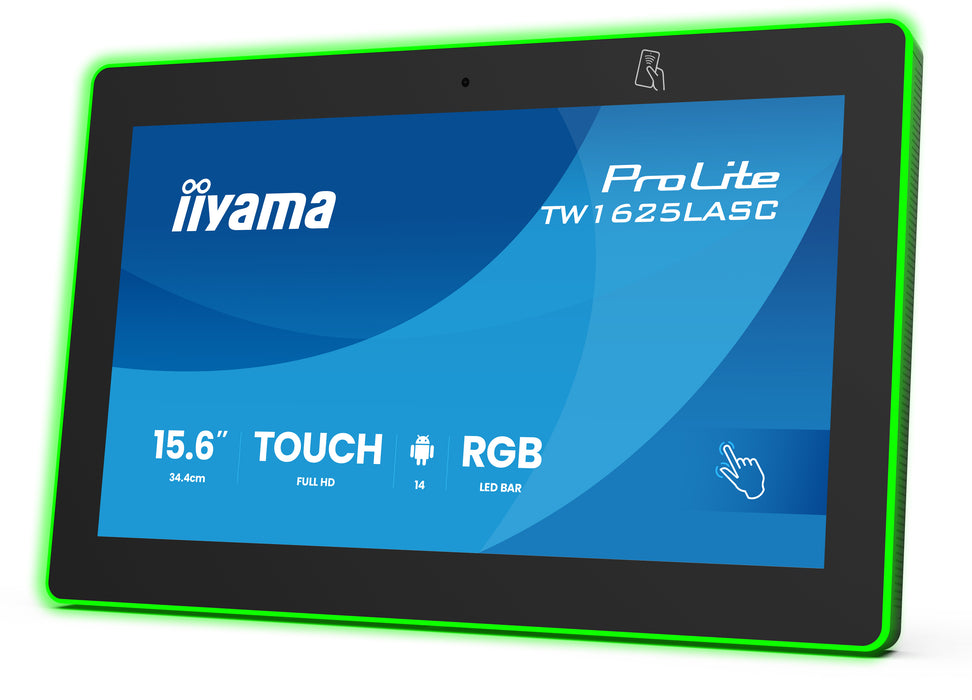

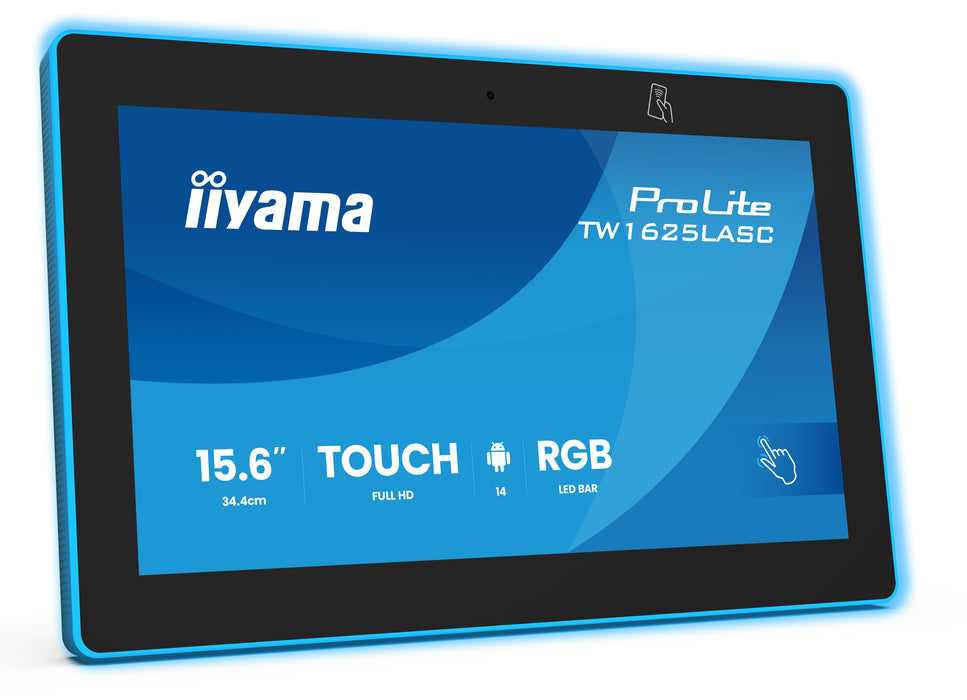

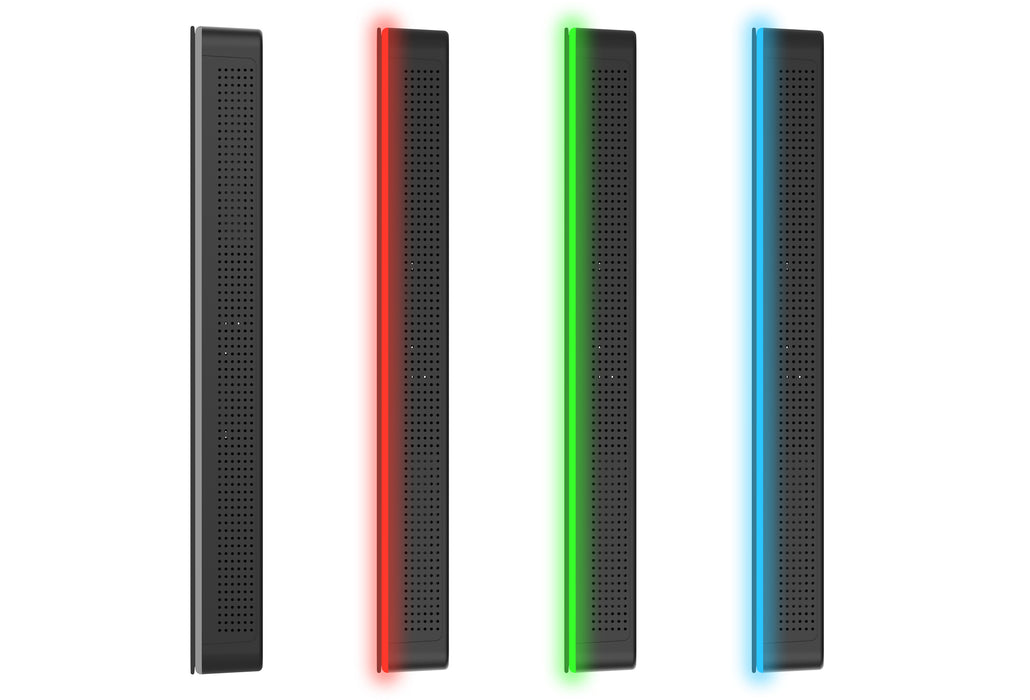

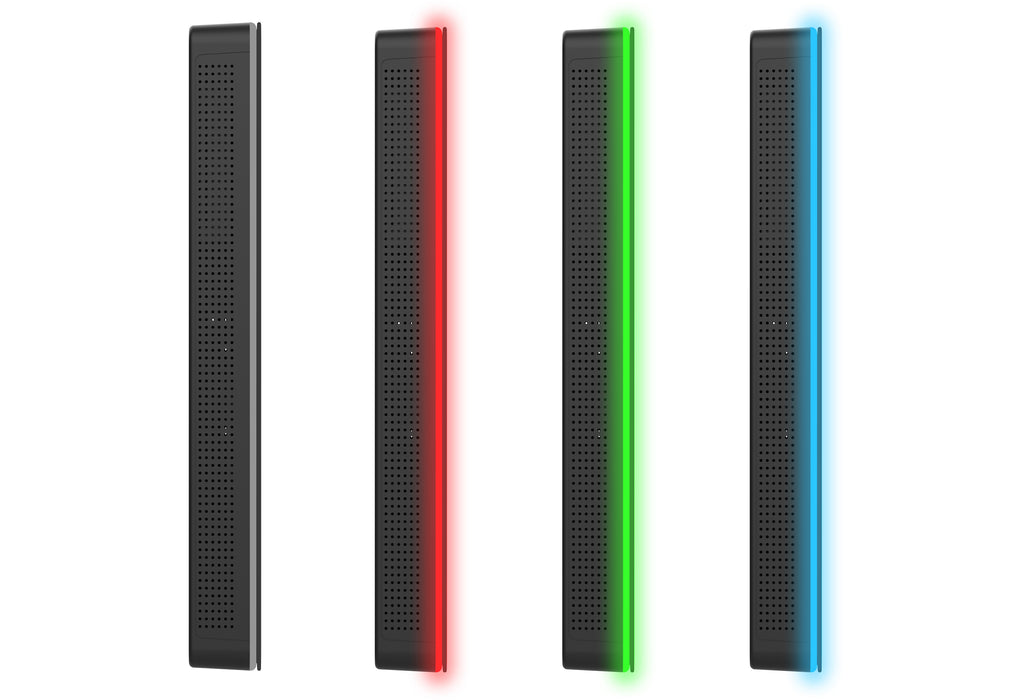

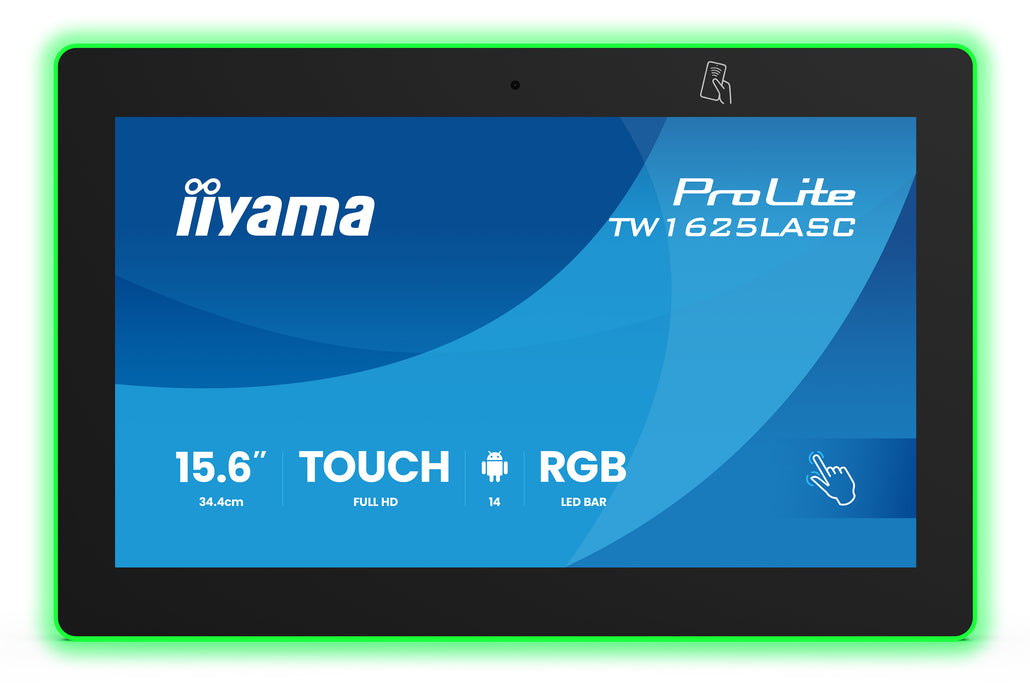

The ProLite TW1625LASC-B3PNR is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology with Optical Bonding ensures smooth and precise interaction with reduced glare, while protecting the display from humidity and moisture build-up. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. The integrated NFC/RFID reader enables contactless interaction with compatible tags or devices – ideal for quick check-in to rooms, employee authentication or triggering automated actions such as starting a presentation. The RGB LED bar integrated into the bezel shows the availability of rooms at a glance. With a built-in 5MP camera, microphone, and speakers, the TW1625LASC-B3PNR delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.
Display
Panel type: IPS
Feature: LED backlight
Display diagonal: 39.6 cm (15.6")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 450 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 20 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.1792 x 0.1792 mm
Active display area (W x H): 344.16 x 193.5 mm
Display diagonal (metric): 34.4 cm
Colour depth: 8 bit
Surface hardness: 6H
Glass thickness: 2.05 mm

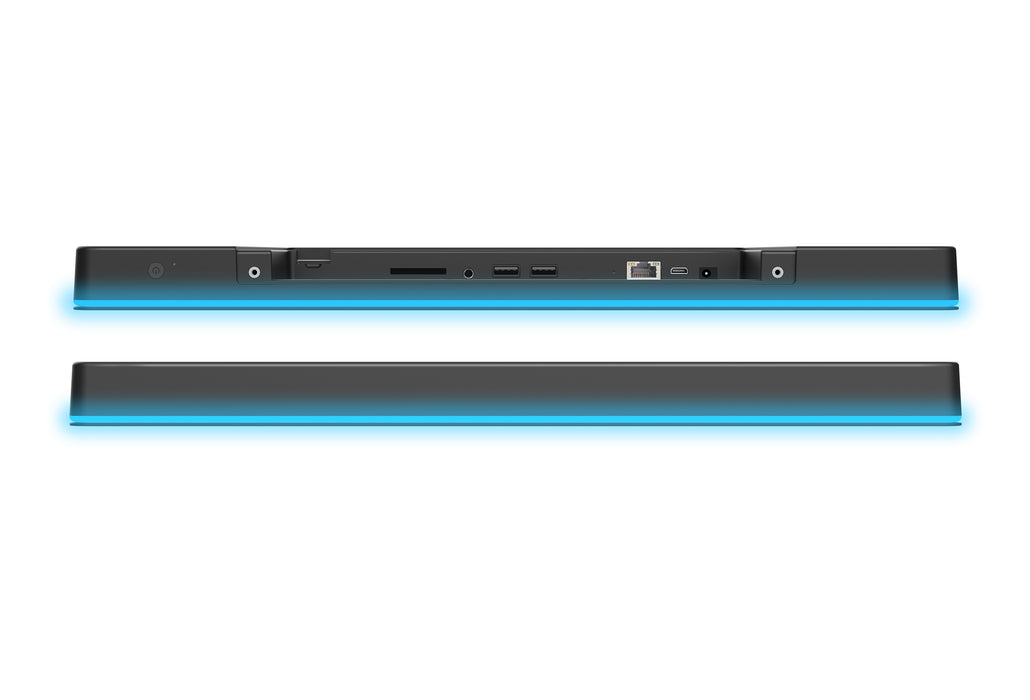

Ports & interfaces
Feature: USB port
USB ports quantity: 3
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Feature: PC Audio in
Feature: Card reader integrated
Compatible memory cards: SD
Feature: PC Audio out
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 4 W
Design
Product design: Interactive flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black

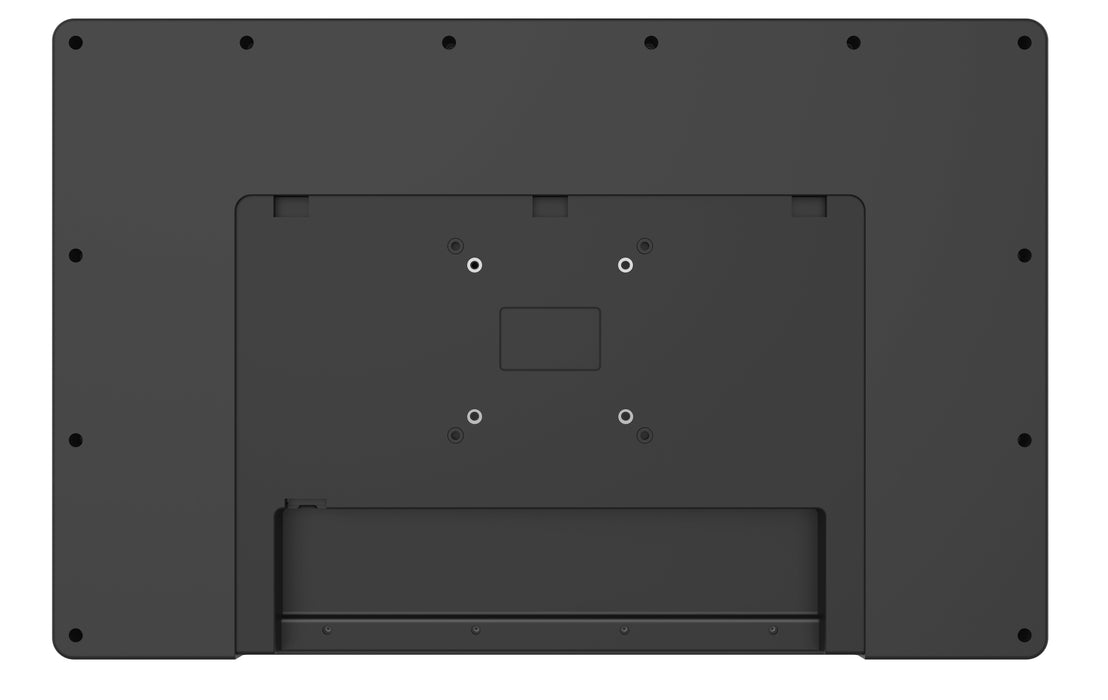

Feature: VESA mounting

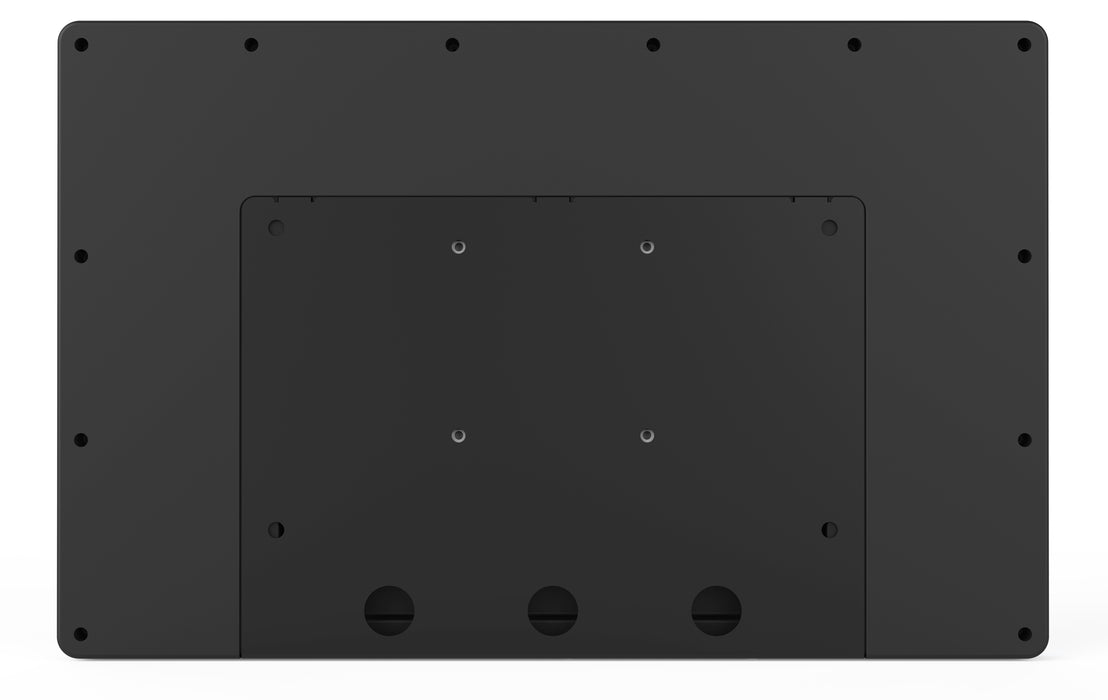

Panel mounting interface: 75 x 75 mm
Feature: Anti-glare screen
Feature: Fingerprint resistant
Performance
Purpose: Universal
Operating hours (hours/days): 24/7
Power
Power consumption (typical): 11 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.5 W
Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Rockchip
Processor architecture: ARM Cortex-A53+Cortex-A72
Processor frequency: 2.2 GHz
Processor cores: 8
Internal memory: 4 GB
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 397 mm
Display depth: 28.5 mm
Display height: 256 mm
Display weight: 2 kg
Width (with stand): 397 mm
Depth (with stand): 28.5 mm
Height (with stand): 256 mm
Weight (with stand): 2 kg
Packaging data
Package width: 495 mm
Package depth: 495 mm
Package height: 305 mm
Package weight: 3 kg
Packaging content
Feature: Power adapter included
Certificates
Certification: CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Features
Feature: Wall mountable
Other features
Feature: Quick start guide
Feature: Bluetooth
Bluetooth version: 5.3
Megapixel (approx.): 5 MP
Viewable size, horizontal: 34.4 cm
Viewable size, vertical: 19.4 cm
Power supply type: External
Feature: Cable management
Feature: Built-in camera
iiyama 15.6” PCAP 10pt touchscreen PC with Android, Power over Ethernet Technology, NFC/RFID reader and a RGB LED bar around the screen. Product design: Interactive flat panel. Display diagonal: 39.6 cm (15.6"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 450 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
iiyama
MBR CODE - TW1625LASC-B3PNR
EAN - 4948570125692
