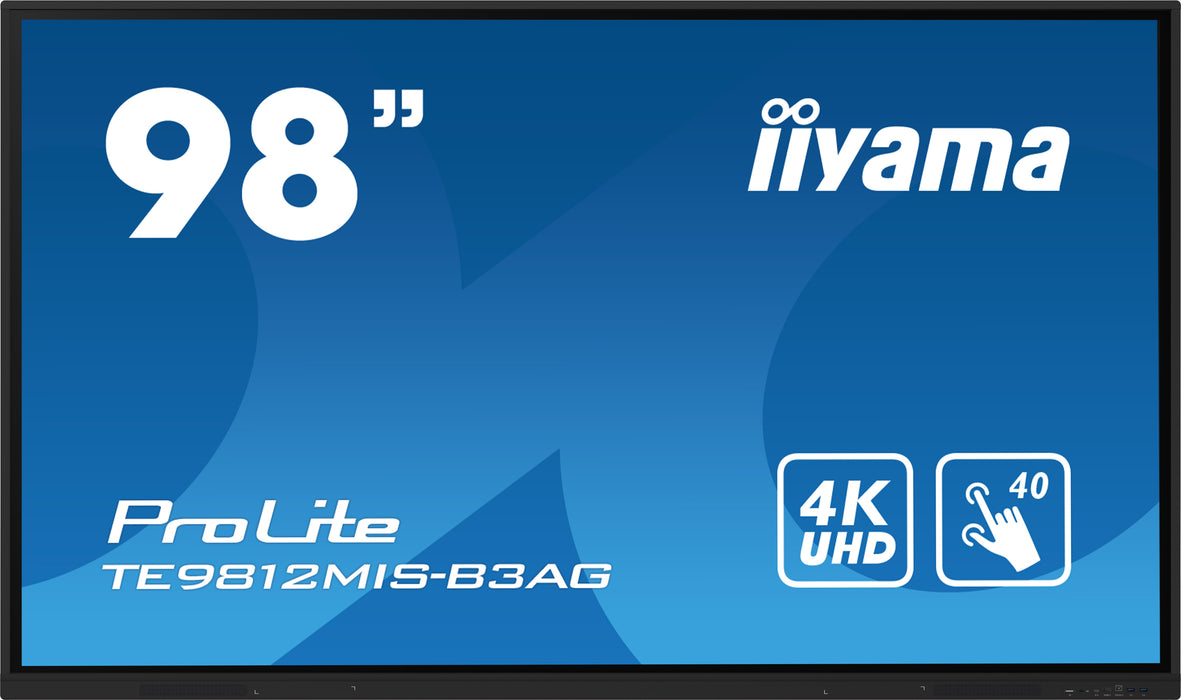

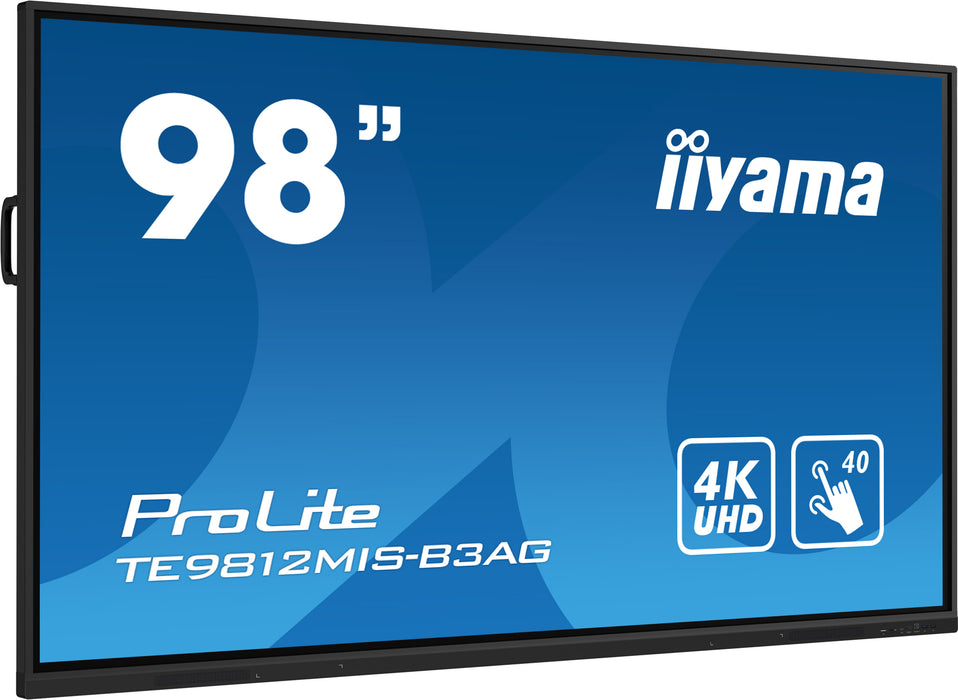

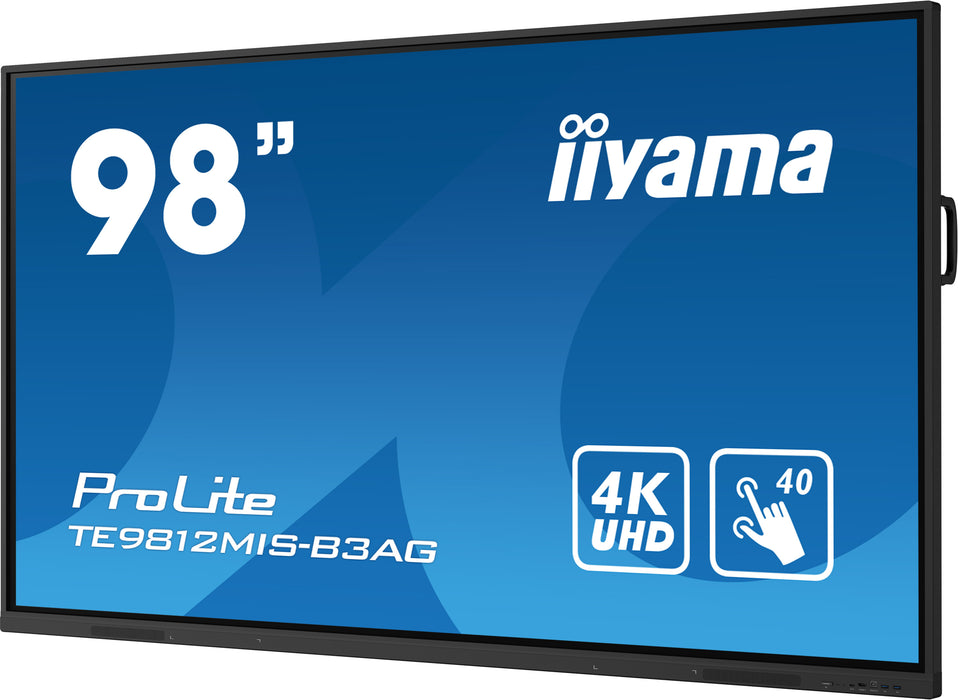

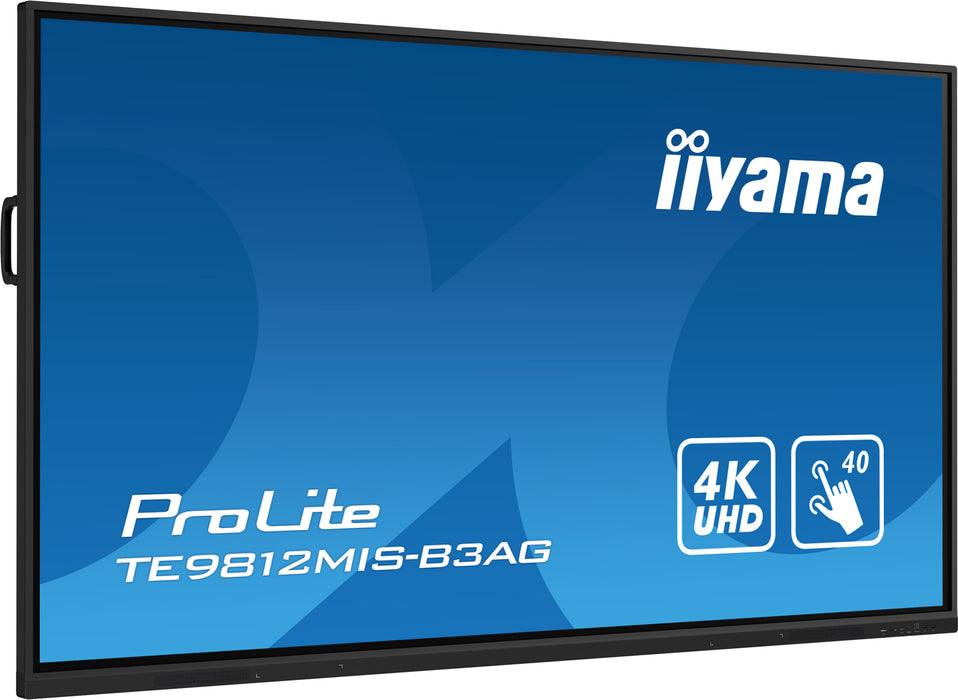

The TE9812MIS-B3AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD screen eliminating parallax, accurate PureTouch-IR, iiWare 10 with Android 11, Wifi, and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for modern workspaces and educational settings. Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE9812MIS-B3AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users. Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the modern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.
Display
Panel type: IPS
Display diagonal: 2.48 m (97.5")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 400 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: PureTouch-IR
Number of simultaneous touchpoints: 40
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.562 x 0.562 mm
Active display area (W x H): 2158.8 x 1214.4 mm
Display diagonal (metric): 247.7 cm
Horizontal scan range: 30 - 135 kHz
Surface hardness: 7H
Glass thickness: 3 mm
Glass film: AG/AR Film

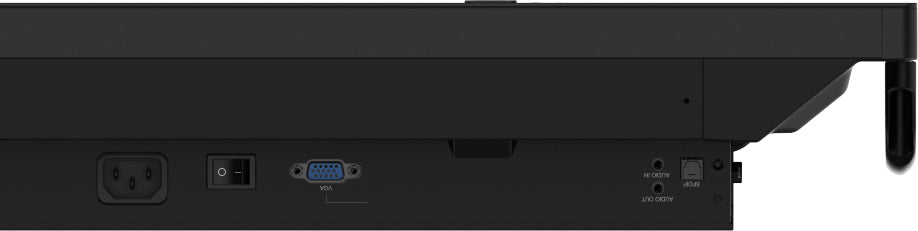

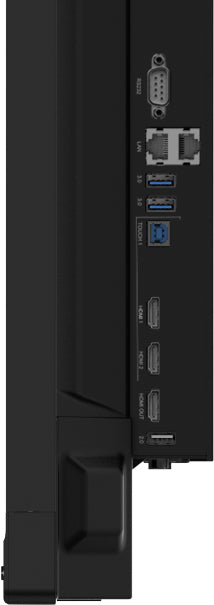

Ports & interfaces
HDMI ports quantity: 4
HDMI version: 2.0
HDMI input ports quantity: 1
HDMI output ports quantity: 1
VGA (D-Sub) input ports: 1
Feature: USB port
USB ports quantity: 5
USB version: 3.2 Gen 1 (3.1 Gen 1)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 3
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 65 W
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Feature: RS-232 interface
Feature: RS-232C
Remote (IR) input: 1
Feature: Audio Return Channel (ARC)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 32 W
Design
Product design: Kiosk design
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black

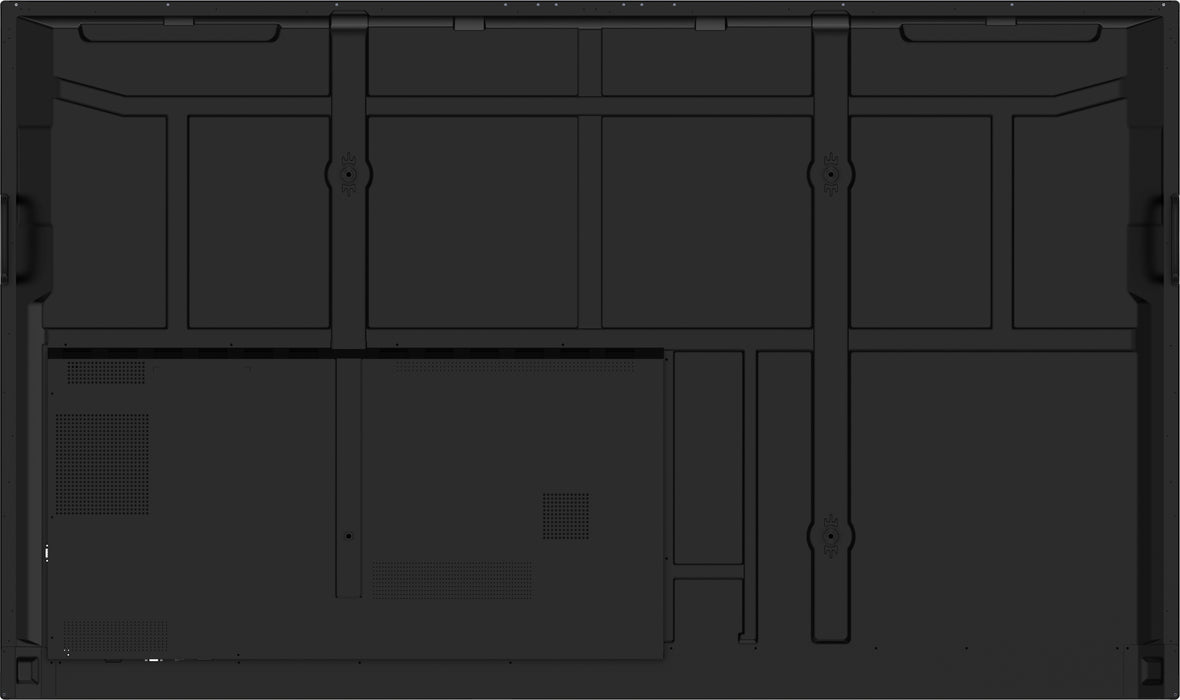

Feature: VESA mounting
Panel mounting interface: 800 x 600 mm
Bezel width (bottom): 3.1 cm
Bezel width (side): 1.65 cm
Bezel width (top): 1.65 cm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Commercial
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Czech, Danish, German, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 233 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: A55
Processor architecture: ARM Cortex-A55
Processor cores: 4
Internal memory: 8 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 64 GB
Operating system installed: Android 11
Weight & dimensions
Display width: 2244.5 mm
Display depth: 92 mm
Display height: 1323 mm
Display weight: 98.5 kg
Width (with stand): 2244.5 mm
Depth (with stand): 92 mm
Height (with stand): 1323 mm
Weight (with stand): 98.5 kg
Packaging data
Package width: 2406 mm
Package depth: 2406 mm
Package height: 1474 mm
Package volume: 128100 cm³
Package weight: 128.1 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: HDMI, Power, USB
Feature: Wi-Fi module included
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): -20 - 60%
Storage temperature (T-T): -20 - 60 °C
Certificates
Certification: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, EPA 8.0
Logistics data
Products per pallet: 4 pc(s)
iiyama 98" Interactive 4K UHD Touchscreen elevating interactive collaboration. Product design: Kiosk design. Display diagonal: 2.48 m (97.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
iiyama
MBR CODE - TE9812MIS-B3AG
EAN - 4948570123728
