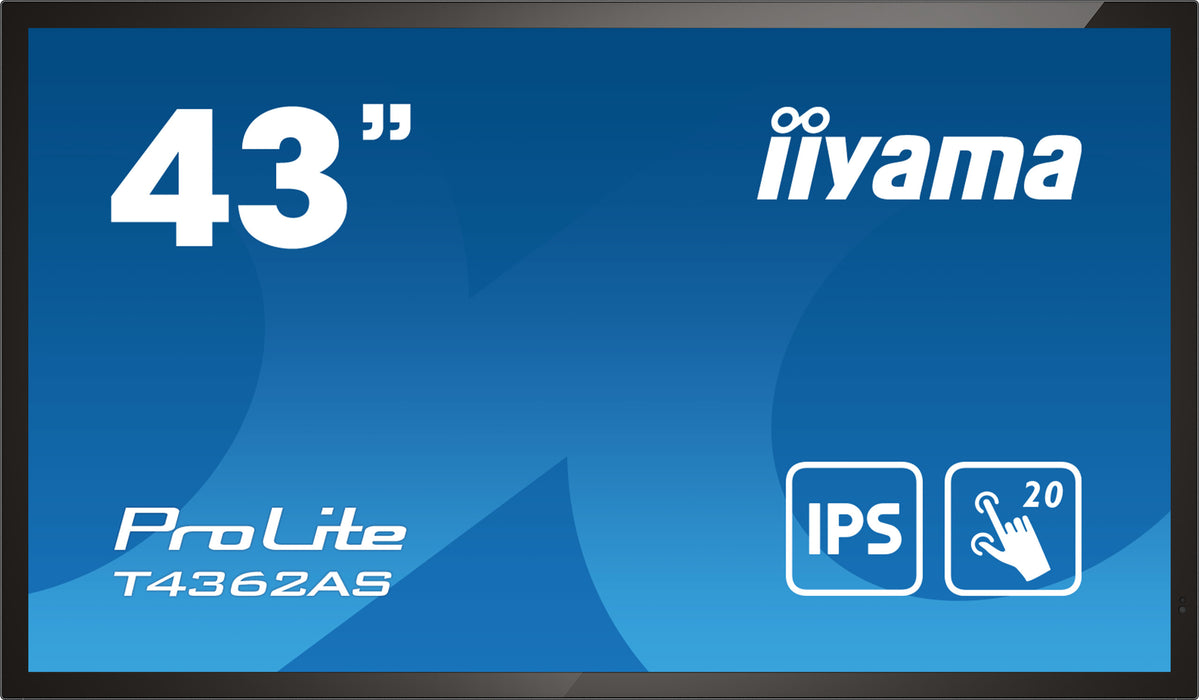

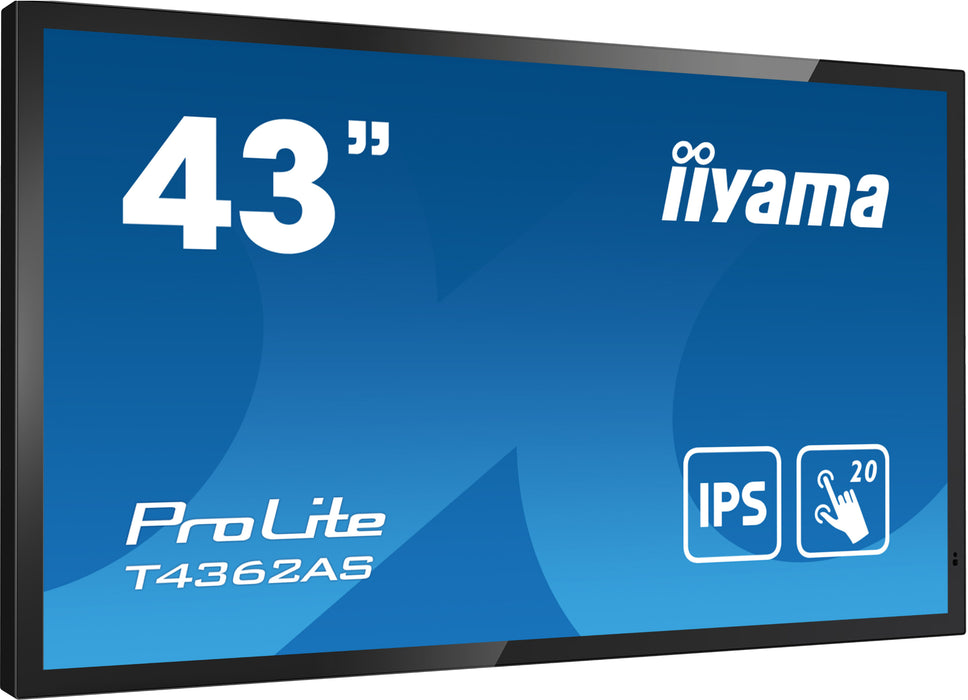

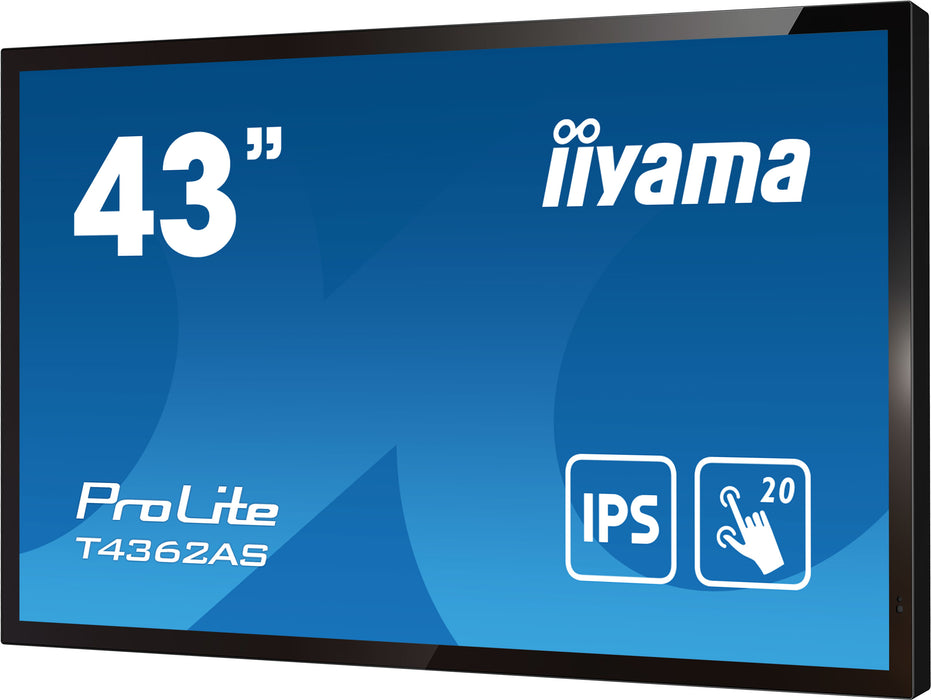

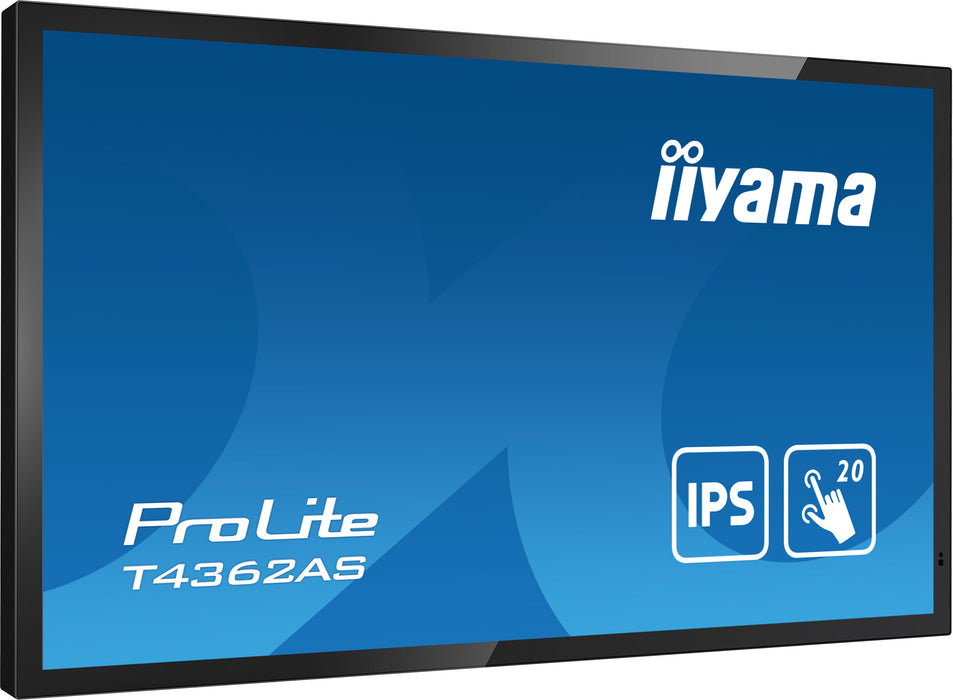

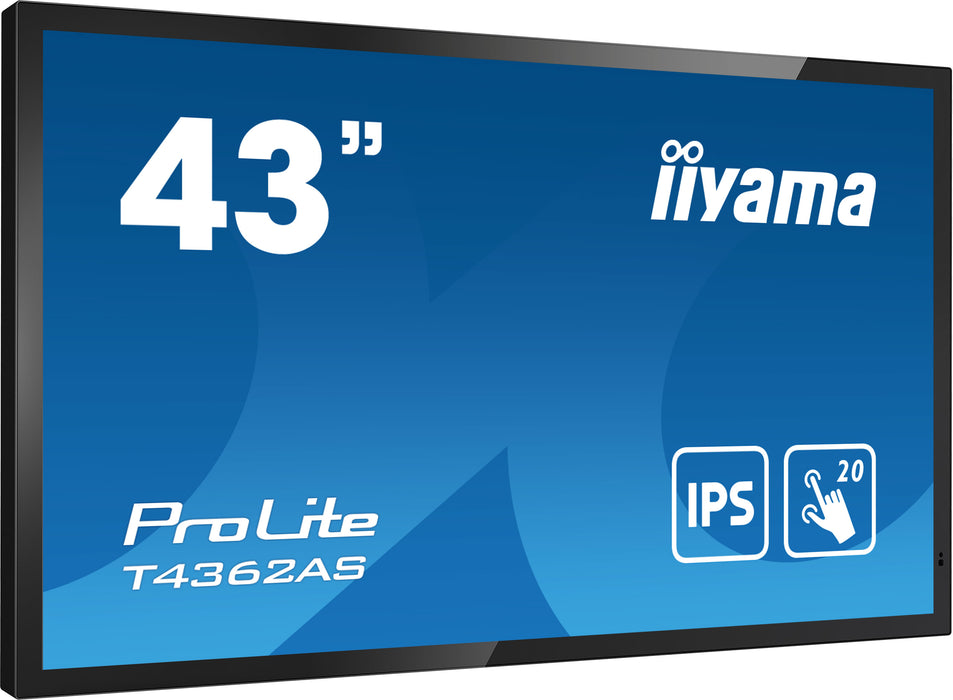

PROLITE T4362AS-B1
All-in-one PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.
The refined design of the T4362AS-B1 lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks.
RETAIL INSTALLATIONS
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make the 62 Series displays one of the most adaptable Touchscreens solutions around.
HUDDLE SPACES
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.
SIGNAL FAILOVER
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Display
Display diagonal: 108 cm (42.5")
Display technology: IPS
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: Capacitive
Number of simultaneous touchpoints: 20
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.245 x 0.245 mm
Active display area (W x H): 941.2 x 529.4 mm
Display diagonal (metric): 108 cm
Horizontal scan range: 30 - 135 kHz
Native refresh rate: 60 Hz
RGB colour space: NTSC

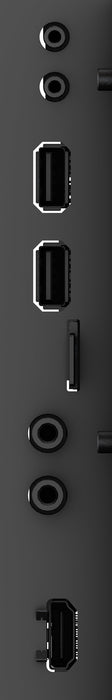

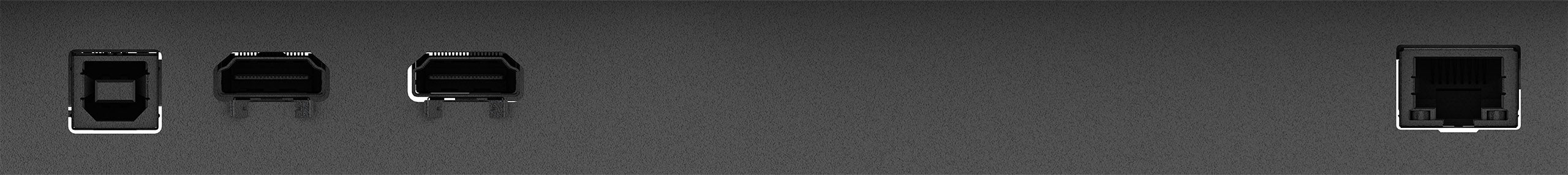

Ports & interfaces
HDMI ports quantity: 3
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Interactive flat panel
Placement supported: Indoor

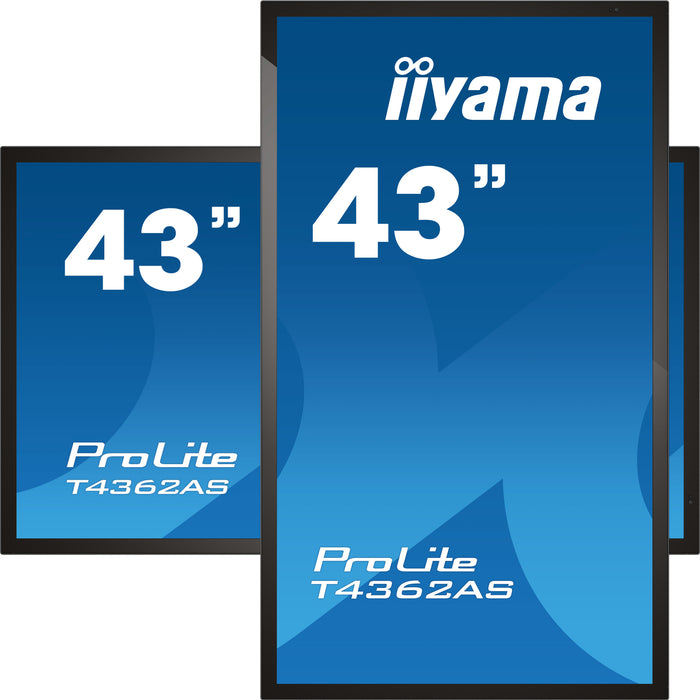

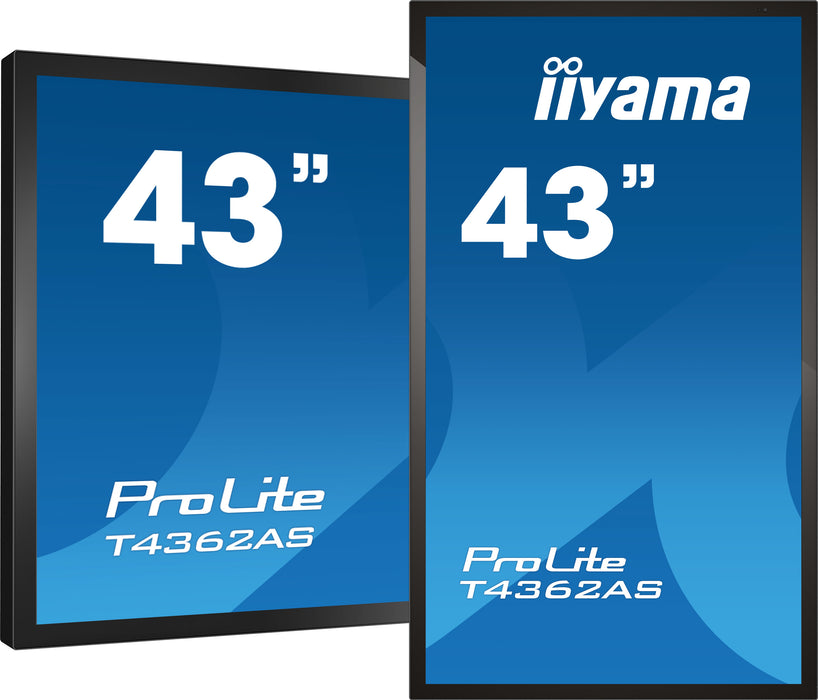

Orientation: Horizontal/Vertical
Product colour: Black

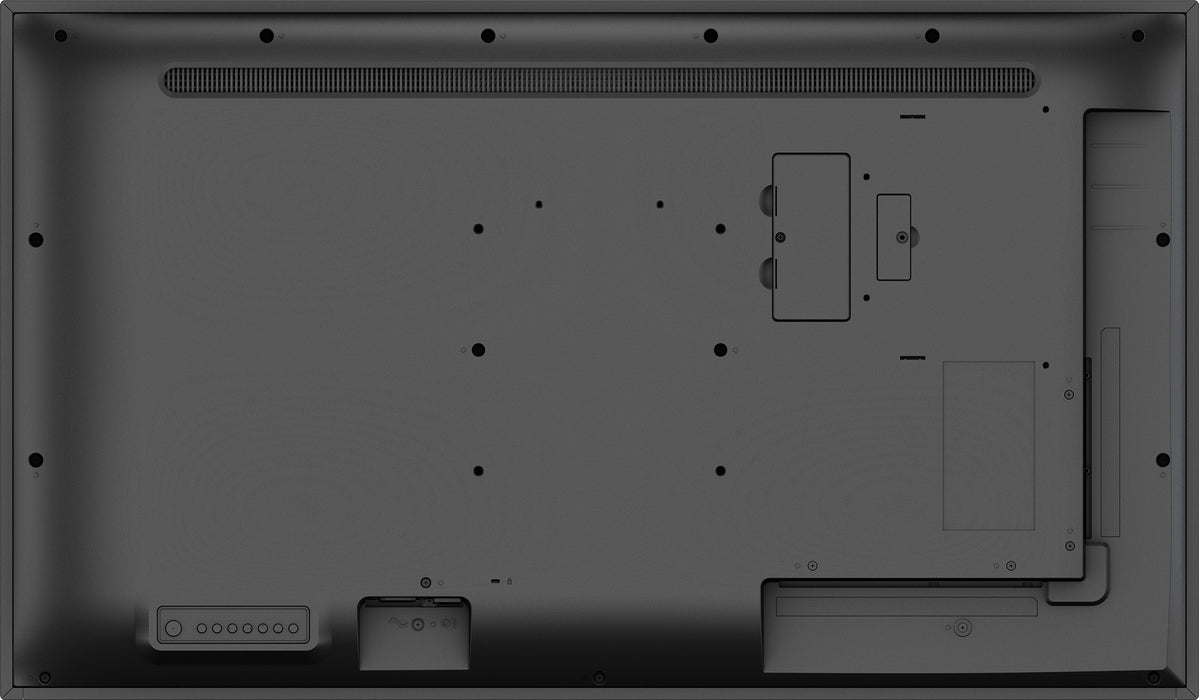

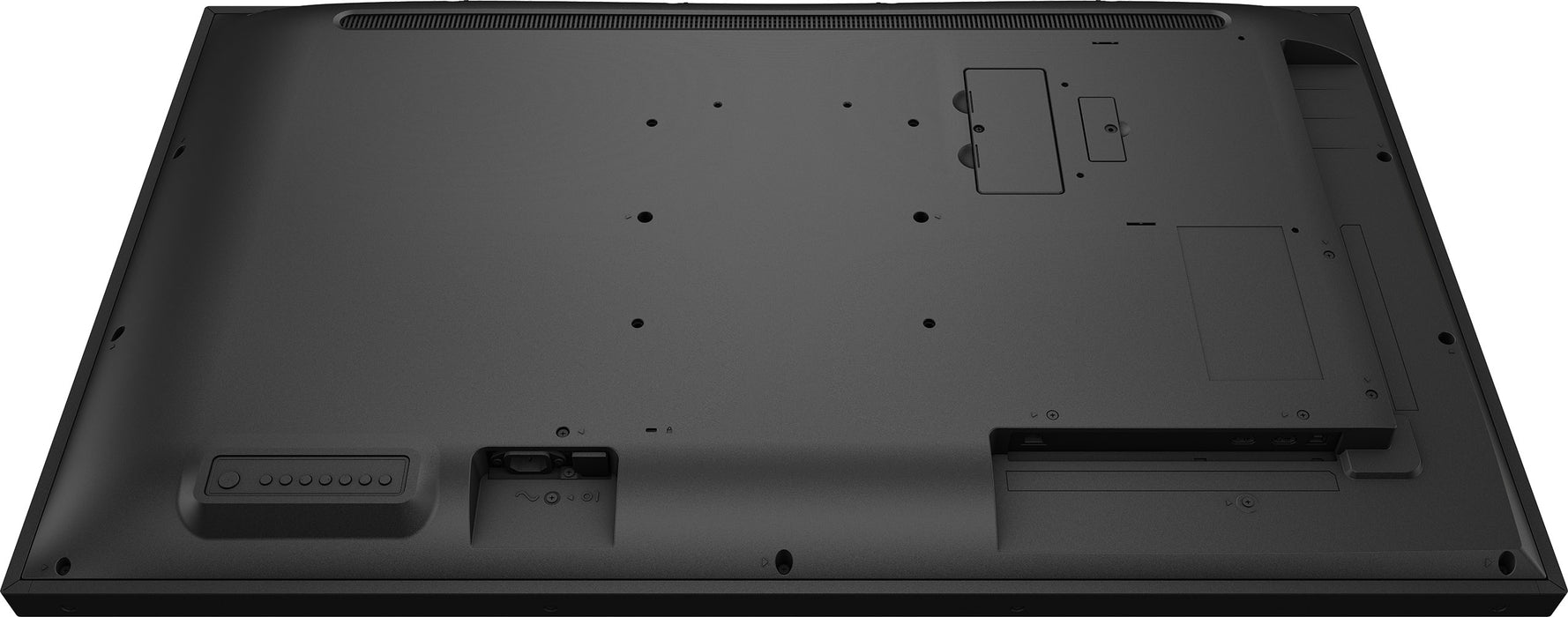

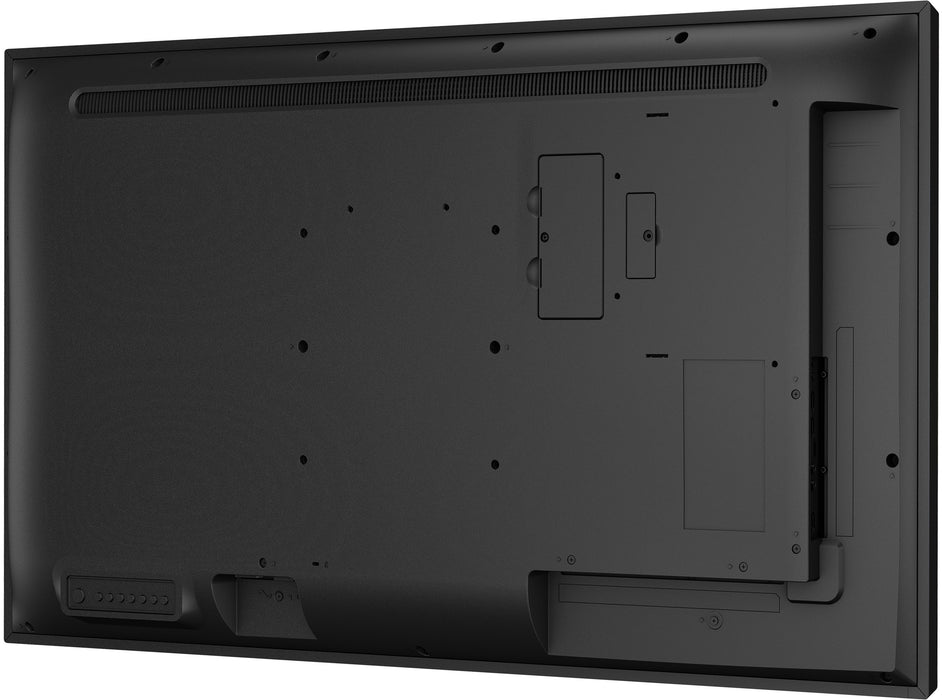

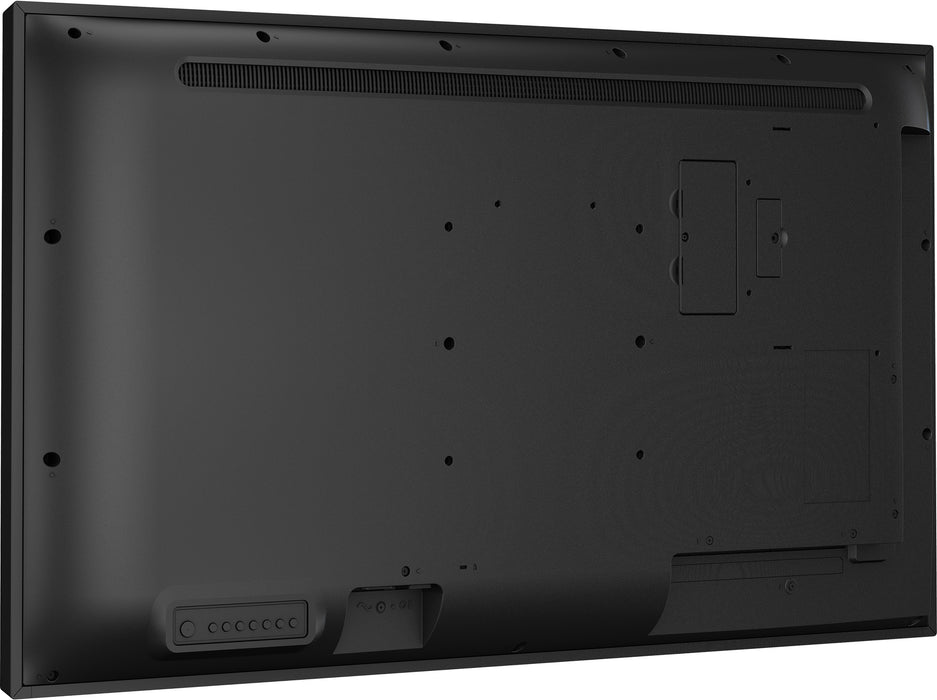

Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 8
On Screen Display (OSD) languages: German, Dutch, English, Spanish, French, Japanese, Polish, Russian
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 75 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Computer system
Feature: Computer system
Feature: Built-in processor
Internal memory: 2 GB
On-board graphics card model: ARM Mali-G51
Internal storage capacity: 16 GB
Operating system installed: Android 8.0
Weight & dimensions
Width: 990 mm
Depth: 70 mm
Height: 578 mm
Weight: 18 kg
Packaging data
Package width: 1070 mm
Package depth: 186 mm
Package height: 702 mm
Package weight: 20.5 kg
Packaging content
Feature: Remote control included
Cables included: AC, HDMI, RS-232, USB
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Technical details
Sustainability certificates: ErP
Pallet net height: 13 cm
Pallet net length: 108 cm
Pallet net width: 114 cm
Compliance certificates: CE, REACH, RoHS, WEEE
iiyama T4362AS-B1. Product design: Interactive flat panel. Display diagonal: 108 cm (42.5"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Operating hours (hours/days): 24/7. Operating system installed: Android 8.0. Product colour: Black
iiyama
MBR CODE - T4362AS-B1
EAN - 4948570120468
