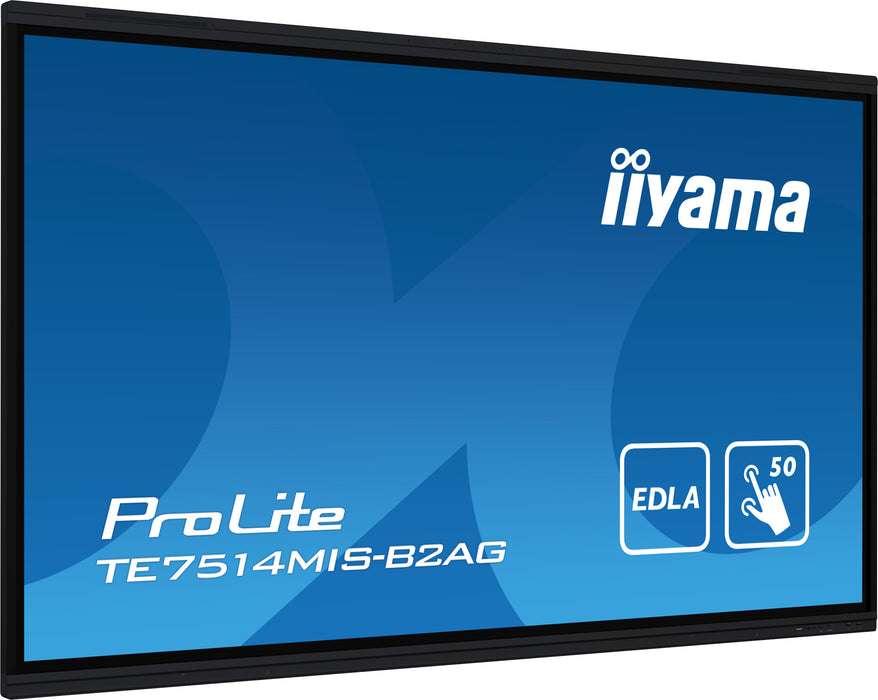

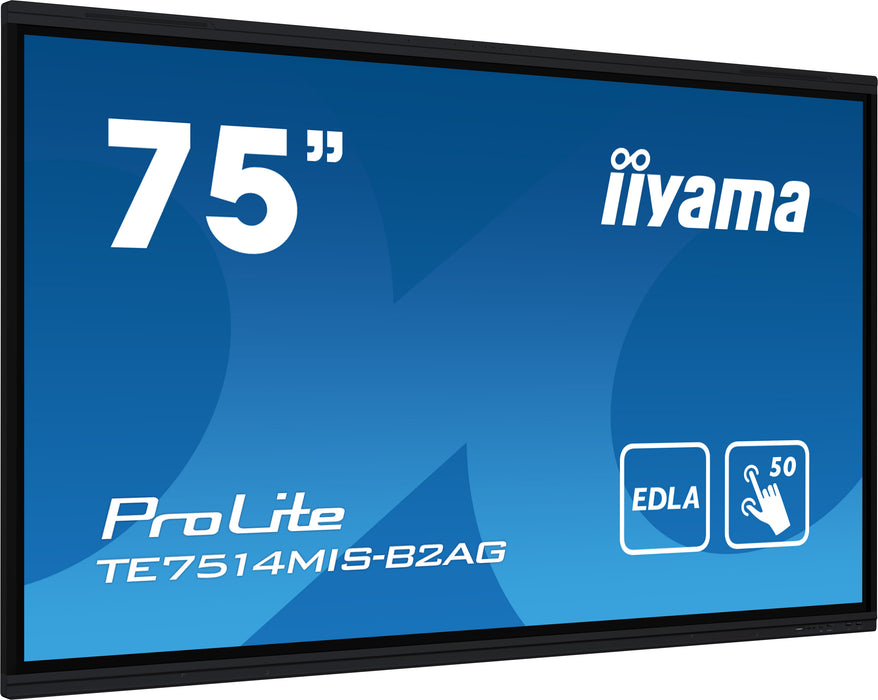

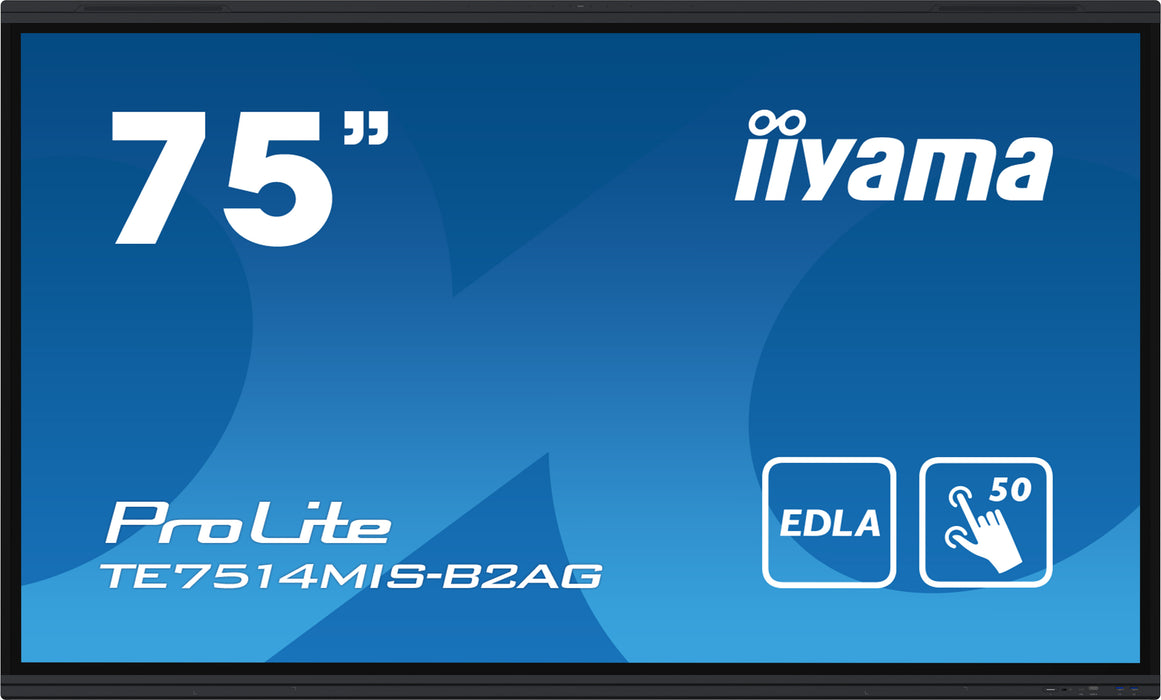

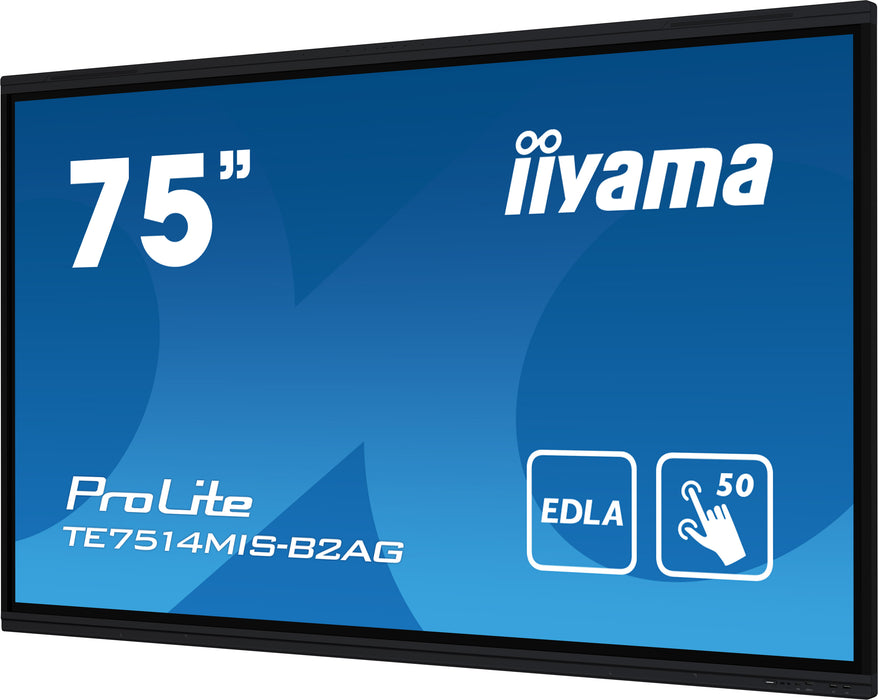

The TE7514MIS-B2AG is a visionary 4K UHD Google EDLA Certified interactive display that sets a new standard for ingenuity and performance. Crafted with precision, it features a Zero Airgap LCD screen that eradicates parallax, alongside the accurate PureTouch-IR+ with Palm Rejection, ensuring seamless interaction. Powered by iiWare 12E with Android 13 and equipped with WiFi connectivity, it effortlessly integrates into your ecosystem, supported by the iiyama (DMS) Device management platform. Experience unparalleled wireless sharing capabilities with the intuitive iiyama Share and EShare app, facilitating seamless brainstorming and effective collaboration within your enterprise or educational institution. With its innovative 4K Interface and customizable User Profiles , the TE7514MIS-B2AG offers a personalized experience, granting easy access to bespoke applications and Cloud Drives. Adapted to thrive in bustling hybrid environments, it becomes a tailored solution for diverse user needs, revolutionizing collaboration, communication, and engagement. Transforming modern workplaces, educational realms, and dynamic meeting spaces, this display emerges as an essential cornerstone, nurturing progress and connectivity beyond boundaries.
Display
Panel type: VA
Display diagonal: 190.5 cm (75")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 435 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: PureTouch-IR
Number of simultaneous touchpoints: 50
Feature: Multi-touch
Number of simultaneous touchpoints (Android): 40
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 5000:1
Contrast ratio (dynamic): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.43 x 0.43 mm
Active display area (W x H): 1650 x 928 mm
Display diagonal (metric): 189.3 cm
Horizontal scan range: 30 - 135 kHz
Native refresh rate: 60 Hz
Haze rate: 25%
Surface hardness: 7H
Glass thickness: 3 mm

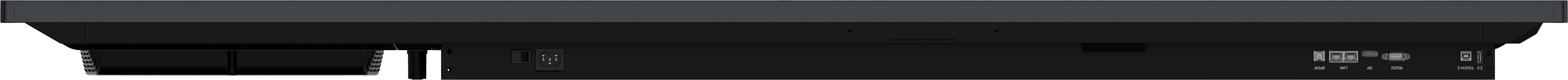

Ports & interfaces
HDMI ports quantity: 5
HDMI version: 2.0
HDMI input ports quantity: 1
HDMI output ports quantity: 1
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPort version: 2.1
Feature: USB port
USB ports quantity: 6
USB connector type: USB Type-C
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
Feature: USB Type-C DisplayPort Alternate Mode
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Feature: RS-232C
Feature: Infrared data port
Remote (IR) input: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 4
RMS rated power: 54 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black
Screen shape: Flat

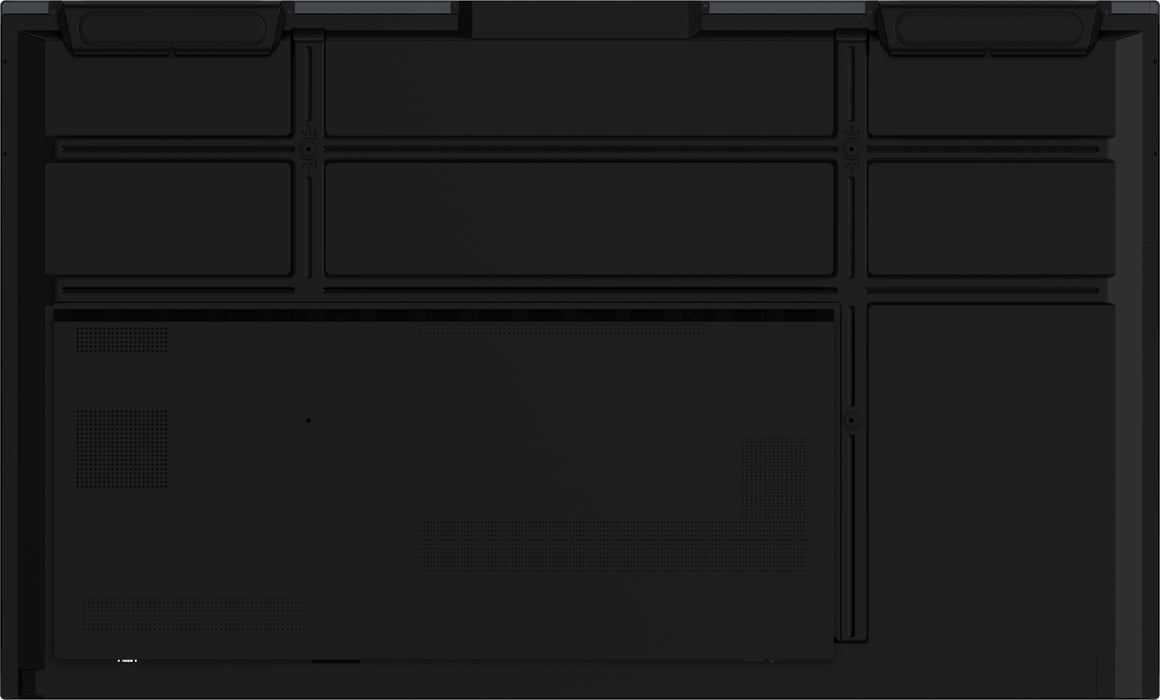

Feature: VESA mounting
Panel mounting interface: 800 x 400 mm
Bezel width (bottom): 4.1 cm
Bezel width (side): 1.65 cm
Bezel width (top): 1.65 cm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 14
On Screen Display (OSD) languages: CAT, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 209 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 197 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor architecture: ARM Cortex-A76+Cortex-A55
Processor cores: 4
Internal memory: 8 GB
On-board graphics card model: ARM Mali-G610 MP4
Internal storage capacity: 64 GB
Operating system installed: Android
Operating system version: 13
Weight & dimensions
Display width: 1709 mm
Display depth: 86 mm
Display height: 1031 mm
Display weight: 51.5 kg
Packaging data
Package width: 1863 mm
Package depth: 1863 mm
Package height: 1148 mm
Package weight: 60.8 kg
Packaging content
Feature: Remote control included
Feature: Batteries included

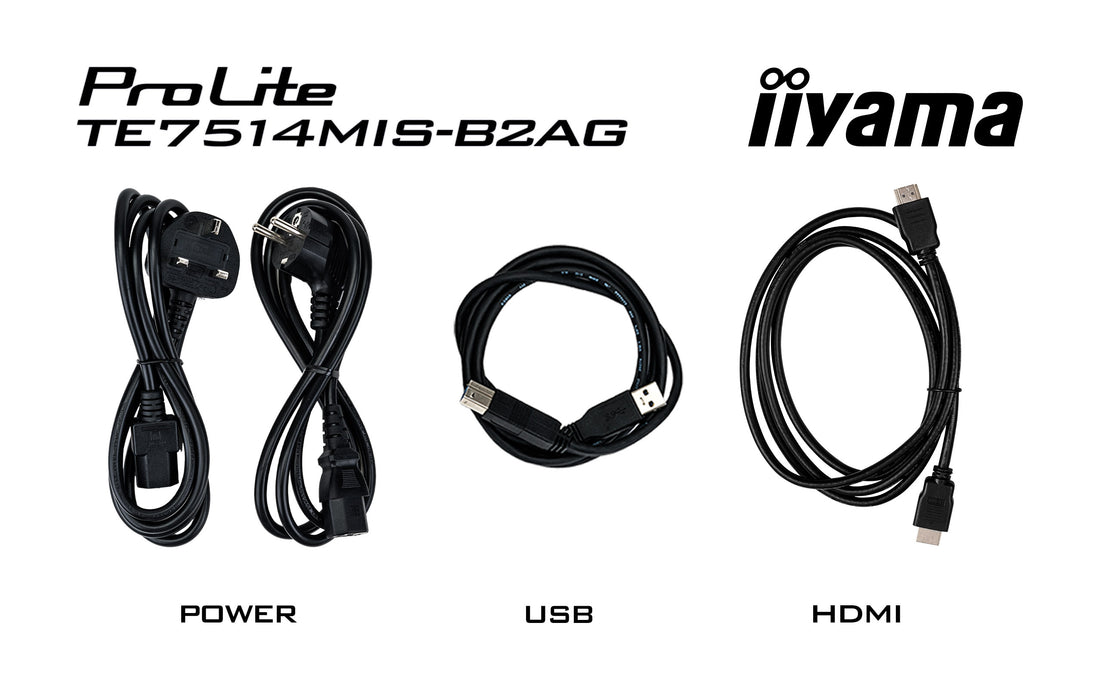

Cables included: AC, HDMI, USB
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Certificates
Certification: CB, CE, TÜV-Bauart, EAC, RoHS, WEEE, REACH
iiyama 75" Google EDLA Certified Interactive display for seamless integration and collaboration in education and enterprise. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 435 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
iiyama
MBR CODE - TE7514MIS-B2AG
EAN - 4948570124039
