The CHIEFTEC ATMOS series is built to Intel‘s ATX 3.0 standard and supports
PCIe GEN5 with 80 PLUS® GOLD certified efficiency, delivering exceptional
performance up to 850W. The ATMOS series features a state-of-the-art technical
design including an SRC Full-bridge converter with DC-to-DC technology, and
Japanese capacitors to ensure longevity and stability.

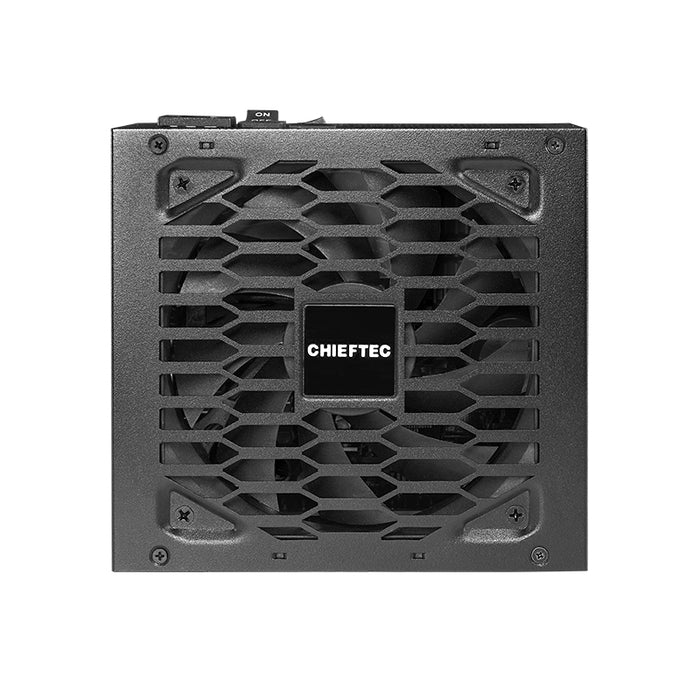

The ATMOS 120mm FDB silent fan optimizes the balance between cooling

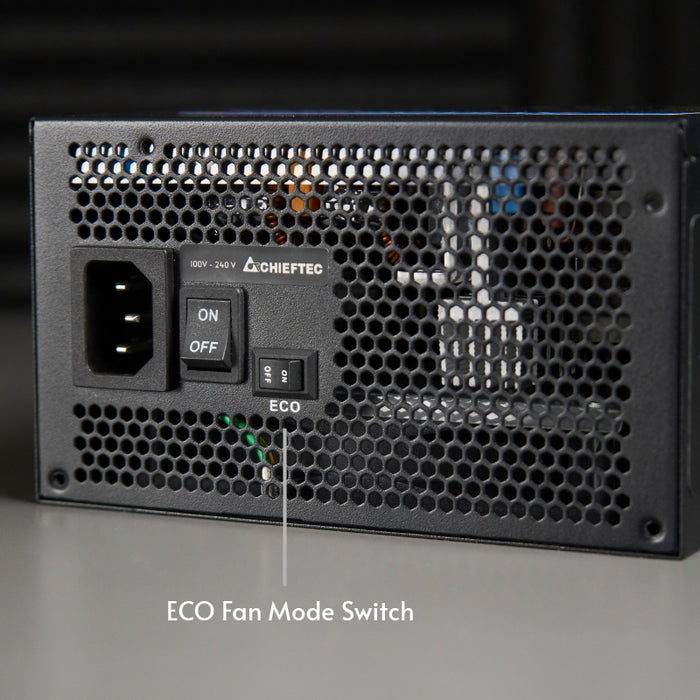

and noise with excellent durability, while the ECO fan mode enables fanless
operations at low loads. CHIEFTEC’s multiple security protection technology is
designed to keep your system safe.
Power
Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 9 - 4.5 A
Maximum input current (@110V): 9 A
Maximum input current (@220V): 4.5 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 20 A
Max output current (+12V1): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over voltage, Short circuit, Surge and inrush
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 9
SATA power cable length: 550,650,750 mm
Peripheral (Molex) power cable length: 550,650,750,850 mm
Feature: EPS power connector (4+4 pin)

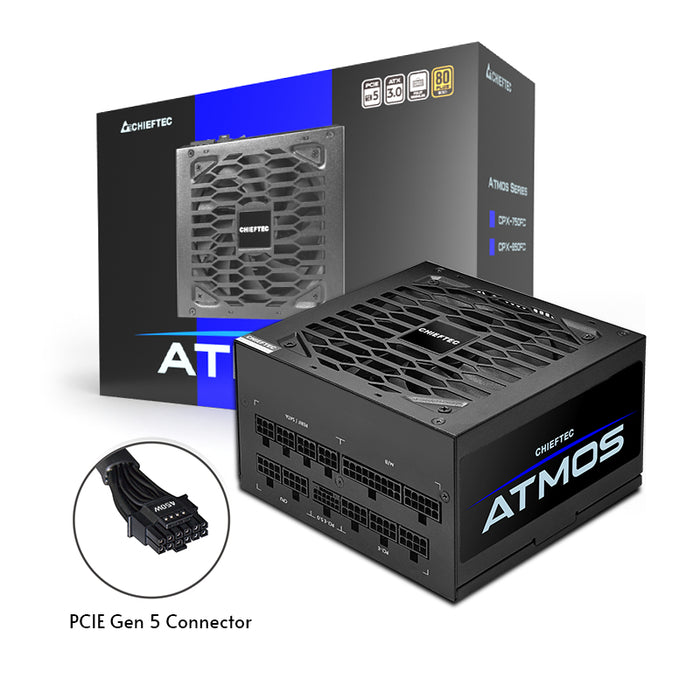

PCI Express power connectors (16-pin): 1
CPU power cable length: 60 cm
Feature: ATX power connector (20+4 pin)

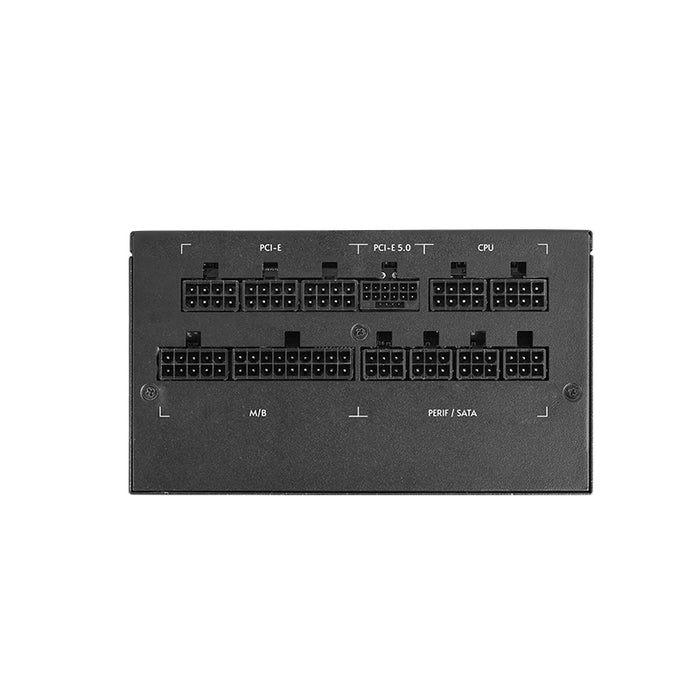

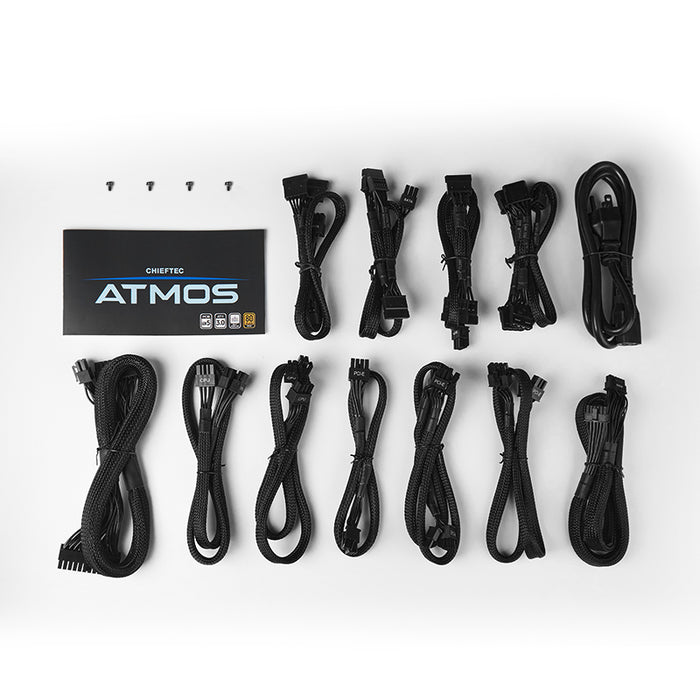

Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Supported motherboard form factors: ATX
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Design
Product colour: Black
Fan diameter: 12 cm
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.49 kg
Chieftec Atmos . Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,650,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Chieftec
MBR CODE - CPX-750FC
EAN - 0753263078391
