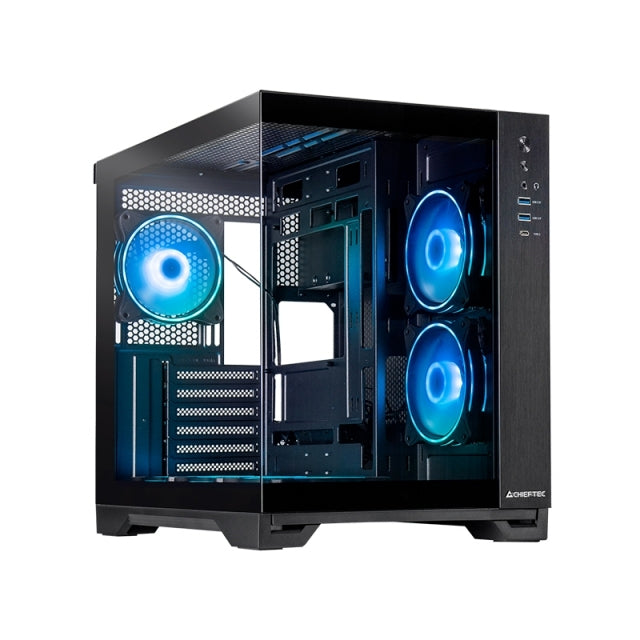

The CHIEFTEC Visio features tempered glass panels on both the left and front sides, incorporating a dual-chamber layout to accommodate the latest back-connect motherboards (ASUS BTF and MSI Project Zero compatible). This design streamlines cable management for a clean interior view and unobstructed airflow.
The refined internal layout supports the mounting of 360mm radiators on the top and bottom, 240mm radiators on the motherboard side, and CPU tower coolers up to 175mm in height. High-end GPUs up to 410mm can be easily accommodated, thanks to its spacious and well-ventilated conguration.
The case comes with six pre-installed 120mm A-RGB fans and a control hub for motherboard synchronization of A-RGB and PWM fan speed control. 5 of these fans are designed with reverse airflow fan blades to enable the optimum intake on the sides and the bottom without sacricing on the aesthetics. Designed with gamers in mind, the CHIEFTEC Visio provides the opportunity to create a distinctive build.
Design
Form factor: Cube
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of internal 3.5" bays: 2
Number of storage drives supported: 4
Number of expansion slots: 6
Full-Height expansion slots: 6
Feature: Side window
Suitable for: Gaming
Feature: Illumination
Illumination colour: Multi
Feature: Tempered glass panel(s)

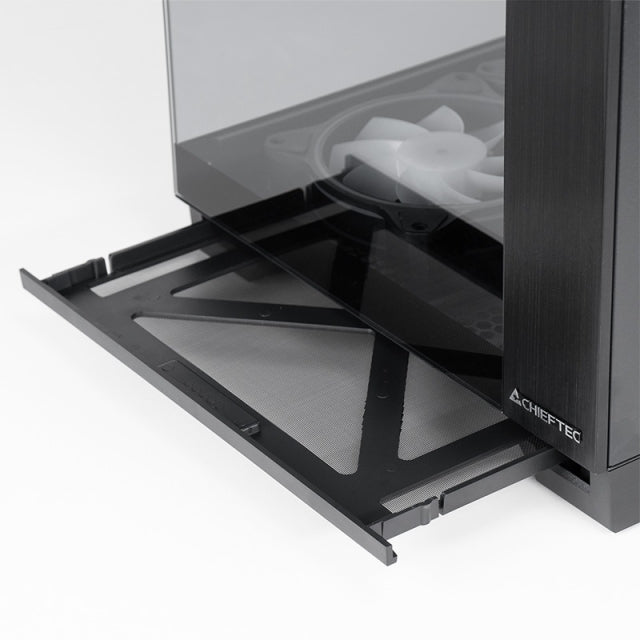

Feature: Anti-dust filter
Maximum CPU cooler height: 17.5 cm
Maximum graphics card length: 41 cm
Maximum PSU length: 20 cm
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Combo headphone/mic port
Cooling
Feature: Fan speed control
Side fans installed: 2x 120 mm
Rear fans installed: 1x 120 mm
Bottom fans installed: 3x 120 mm
Feature: Liquid cooling capability
Top radiator sizes supported: 240,280,360 mm
Storage
Supported HDD sizes: 2.5,3.5"
Feature: HDD/SSD combo cage
Weight & dimensions
Width: 295 mm
Depth: 430 mm
Height: 390 mm
Weight: 7.3 kg
Chieftec Visio GM-30B-TG-OP schwarz Tempered Glass x 2. Form factor: Cube, Type: PC, Product colour: Black. Side fans installed: 2x 120 mm, Rear fans installed: 1x 120 mm, Bottom fans installed: 3x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 295 mm, Depth: 430 mm, Height: 390 mm
Chieftec
MBR CODE - GM-30B-TG-OP
EAN - 0753263078681
