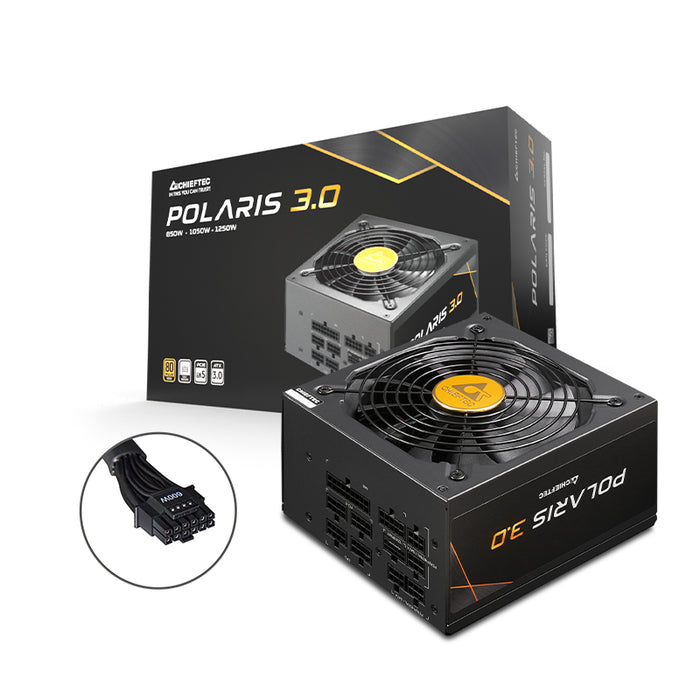

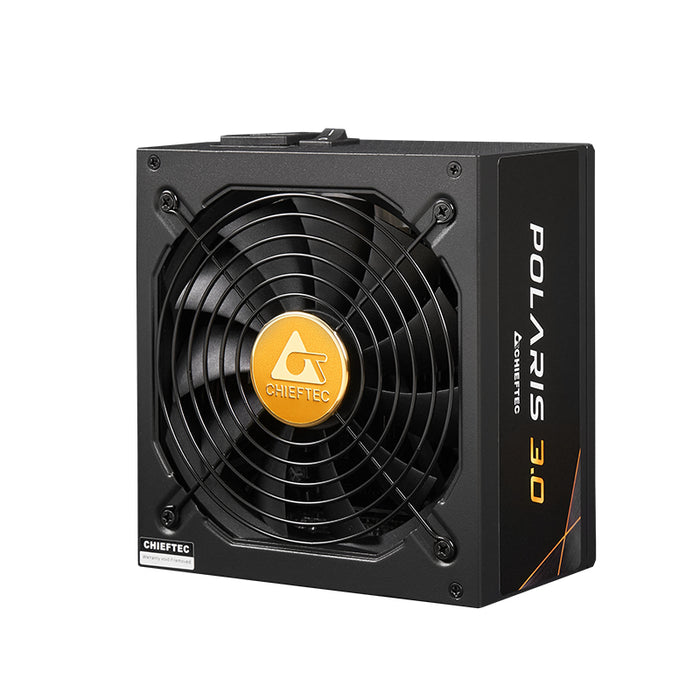

The CHIEFTEC Polaris 3.0 series is designed to Intel’s ATX 3.0 standard and supports PCIe GEN 5 with 80 PLUS® GOLD certified efficiency, promising exceptional performance. Polaris 3.0 features state-of-the-art technical design including LLC half-bridge converter with DC- to-DC technology, as well as Japanese main capacitors to achieve low ripple and tight voltage regulation. The Polaris 3.0 135mm FDB silent fan optimizes the balance between cooling and noise with excellent durability. Fully modular cable management ensures a clean and convenient build inside any system.
Power
Total power: 1050 W

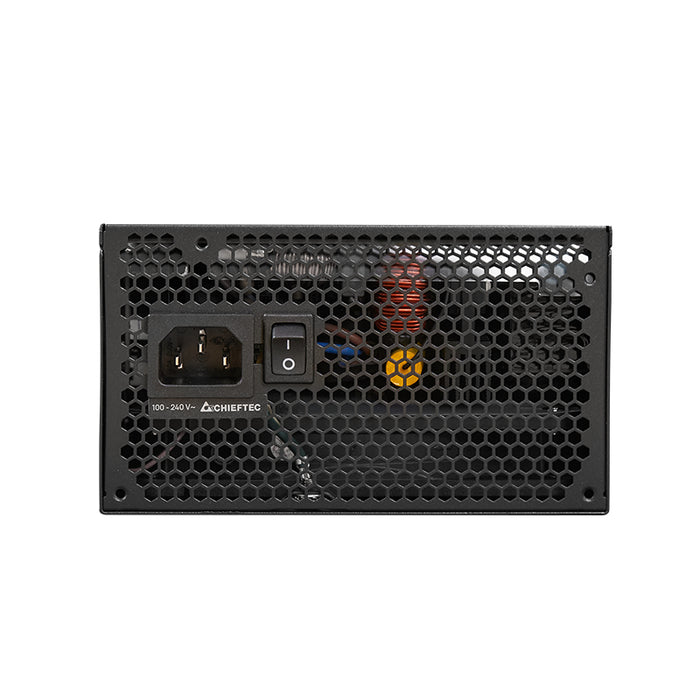

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15-8 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V1): 87.5 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overload, Short circuit, Under voltage

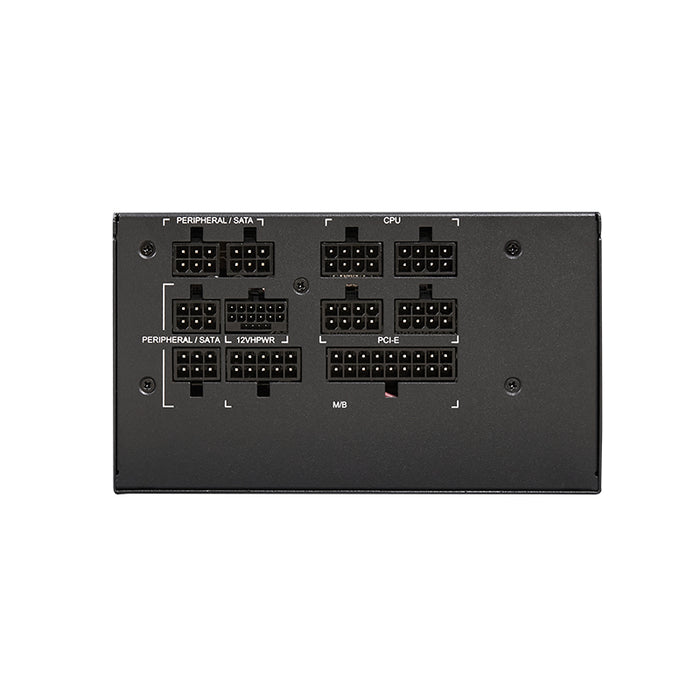

Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 12
SATA power cable length: 100,550 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 100,550 mm
Feature: EPS power connector (8-pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 1

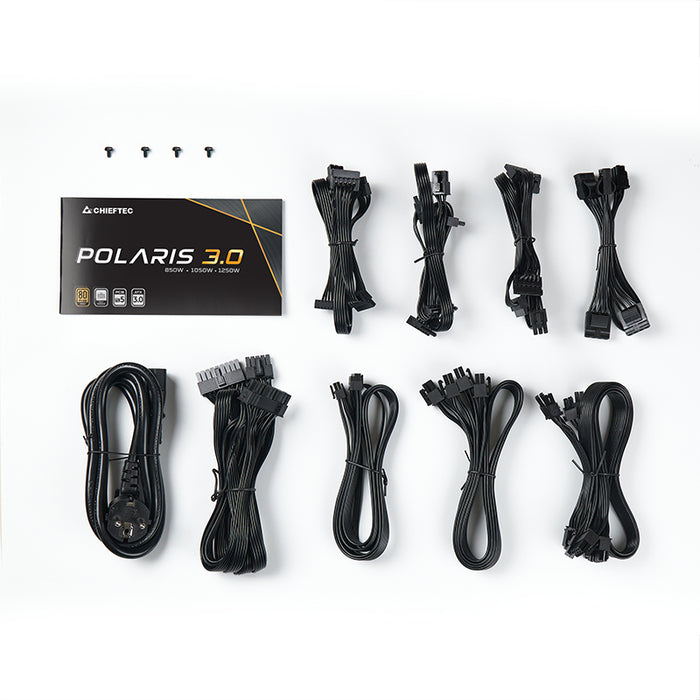

Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0

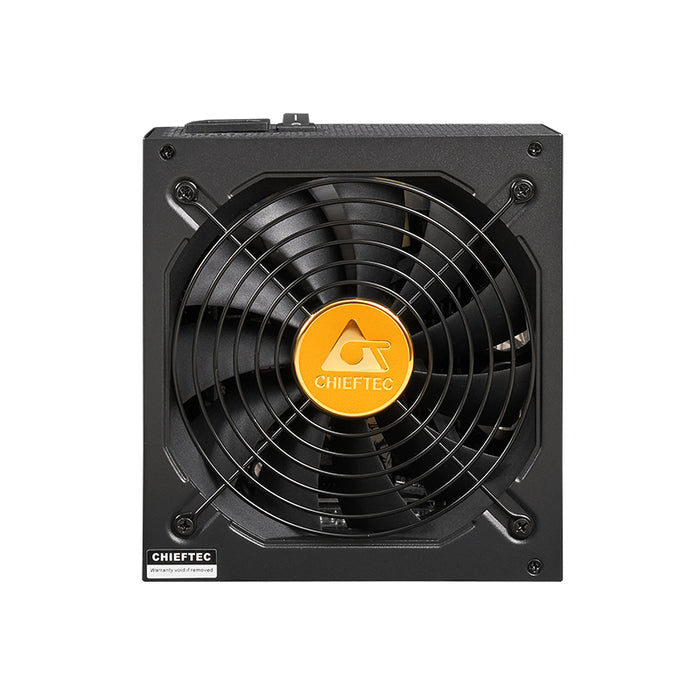

Bearing technology: FDB
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Certificates
Compliance certificates: RoHS, Federal Communications Commission (FCC), EAC, CB, CE
Weight & dimensions
Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 3 kg
Packaging data
Package weight: 3.34 kg
Package type: Box
Technical details
Feature: Sustainability compliance
Logistics data
Warranty period: 5 year(s)
Chieftec Polaris 3.0 1050W. Total power: 1050 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 100,550 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: RoHS, Federal Communications Commission (FCC), EAC, CB, CE
Chieftec
MBR CODE - PPS-1050FC-A3
EAN - 0753263078148
