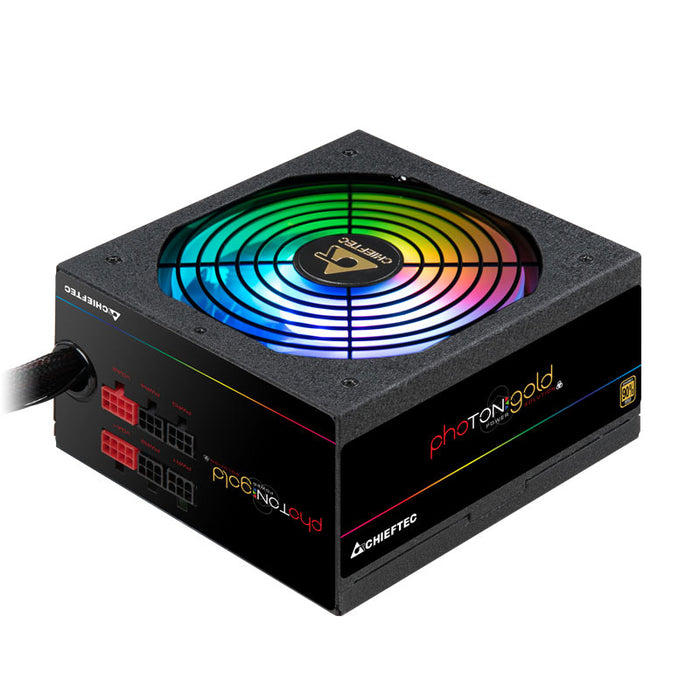

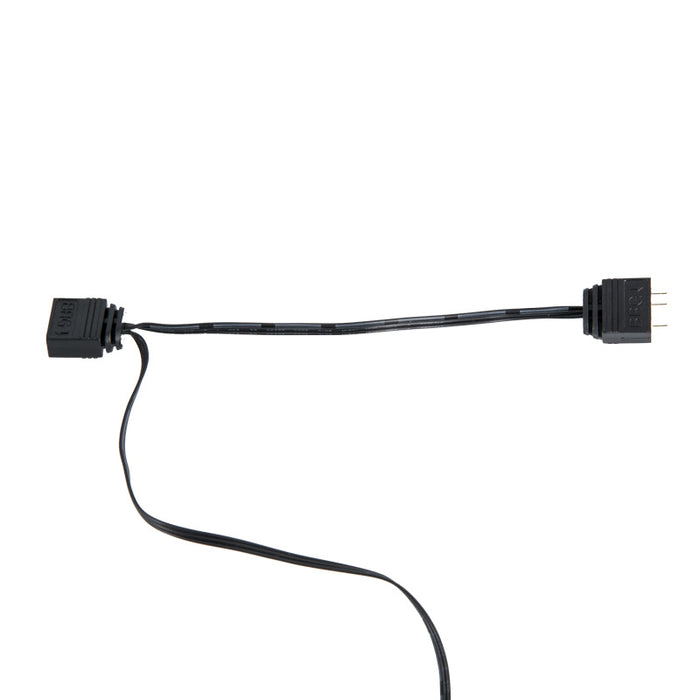

The highly innovative Photon GOLD series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lightning effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lightening modes and effects, supports all renowned RGB lightening synchronization systems such as ASUS AURA SYNC, MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC and GIGABYTE RGB FUSION.

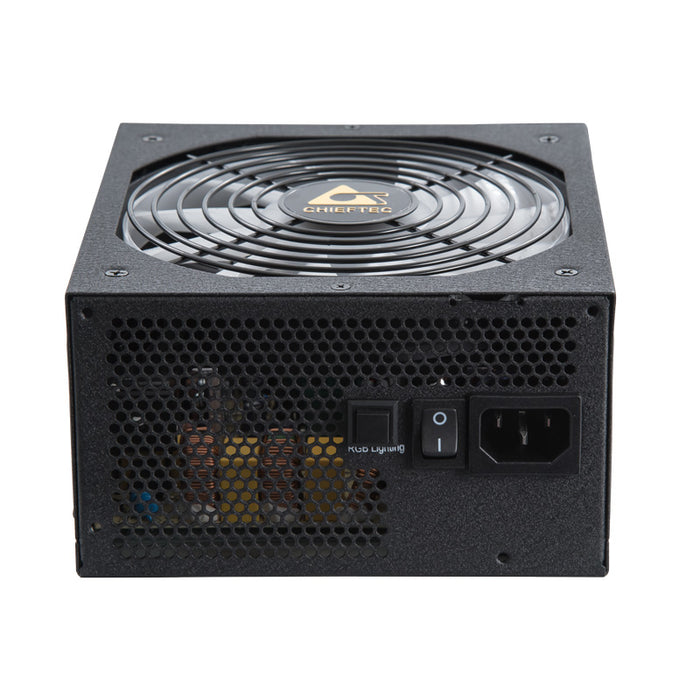

Photon GOLD series in addition provide a vast number of predefined and MBindependent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its vast amount of extra-long cables and an efficiency of 90% @230V, the models of the Photon GOLD series stands out as a perfect RGB gaming solutions.
Power
Total power: 750 W
AC input voltage: 200 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 5 A
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 22 A
Max output current (+12V1): 62 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 90%
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 8
SATA power cable length: 150,550 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 150,550 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power cable length: 55 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 55 cm
Floppy drive power connector: 1
Feature: Floppy disk drive connector

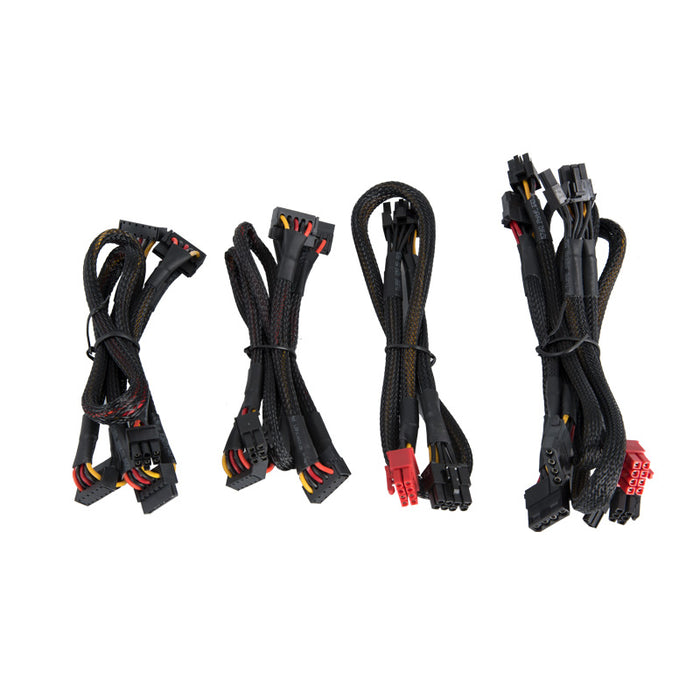

Cabling type: Semi-Modular
Performance
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: PS/2
Design
Product colour: Black
Cooling type: Active
Number of fans: 1 fan(s)
Fan location: Top
Feature: Illumination
Weight & dimensions
Width: 150 mm
Depth: 160 mm
Height: 87 mm
Weight: 2.3 kg
Logistics data
Harmonized System (HS) code: 84733020
Other features
Illumination colour: Blue, Green, Red
Chieftec Photon GOLD. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, SATA power cable length: 150,550 mm, Peripheral (Molex) power cable length: 150,550 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, Supported motherboard form factors: ATX. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Width: 150 mm, Depth: 160 mm, Height: 87 mm
Chieftec
MBR CODE - GDP-750C-RGB
EAN - 0753263075901
