High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
Power
Total power: 350 W
AC input voltage: 200 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 3 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 90 W
Combined power (+12V): 312 W
Combined power (+5V): 90 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 16 A
Max output current (+12V1): 26 A
Max output current (+5V): 15 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 85%
Power protection features: Over voltage, Overload, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 5
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 1
Cabling type: Non-Modular
Performance
Purpose: PC
Power supply unit (PSU) form factor: PS/2
ATX version: 2.3
Design
Product colour: Silver
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Certificates
Compliance certificates: RoHS
Weight & dimensions
Width: 140 mm
Depth: 150 mm
Height: 87 mm
Packaging data
Feature: Manual
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
Other features
Feature: Warranty card

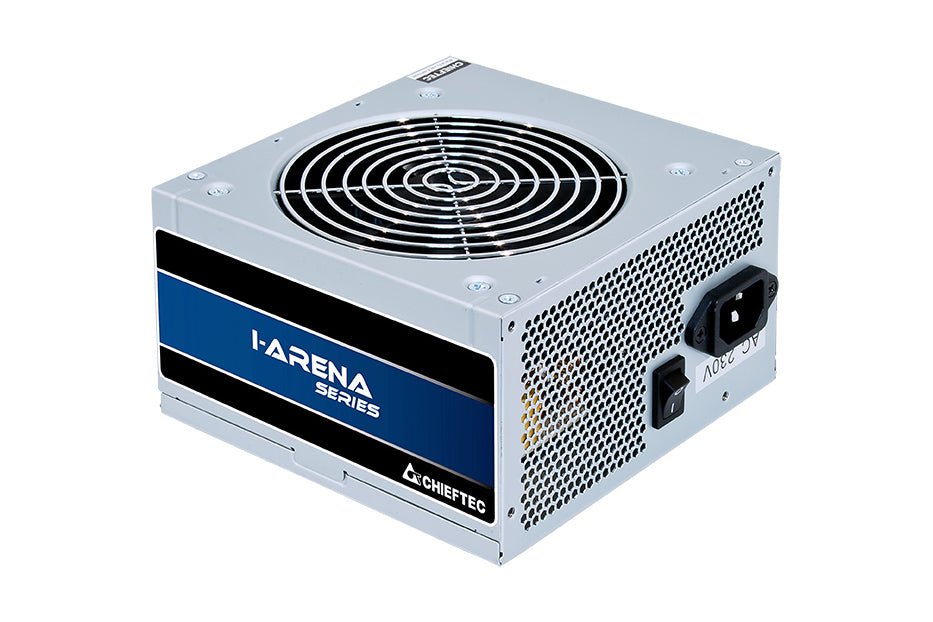

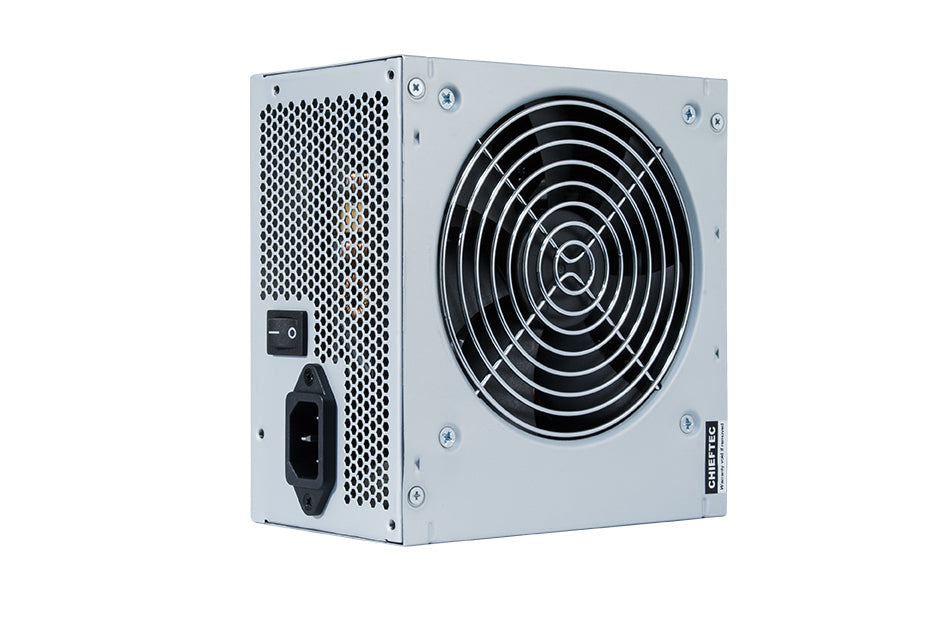

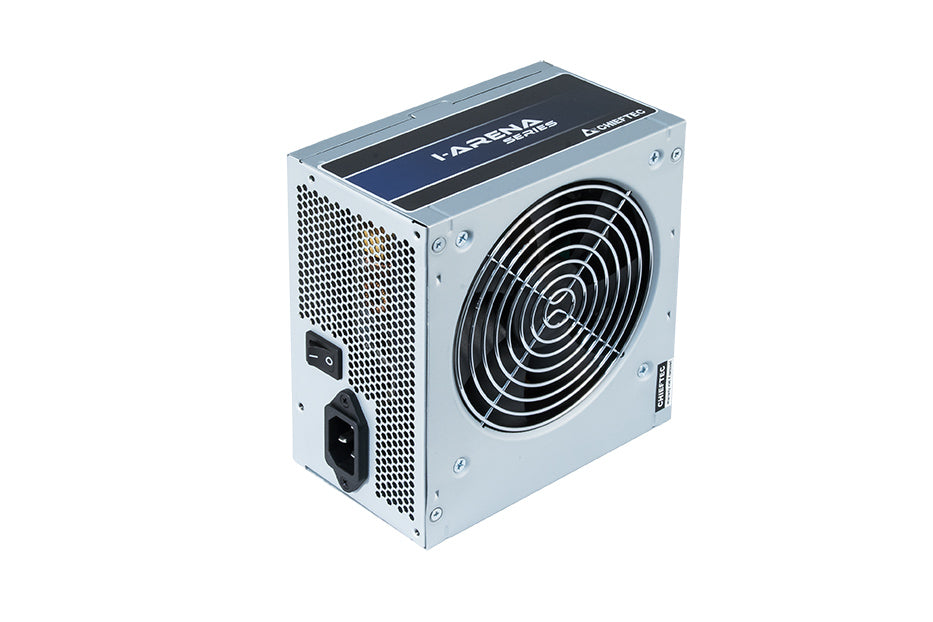

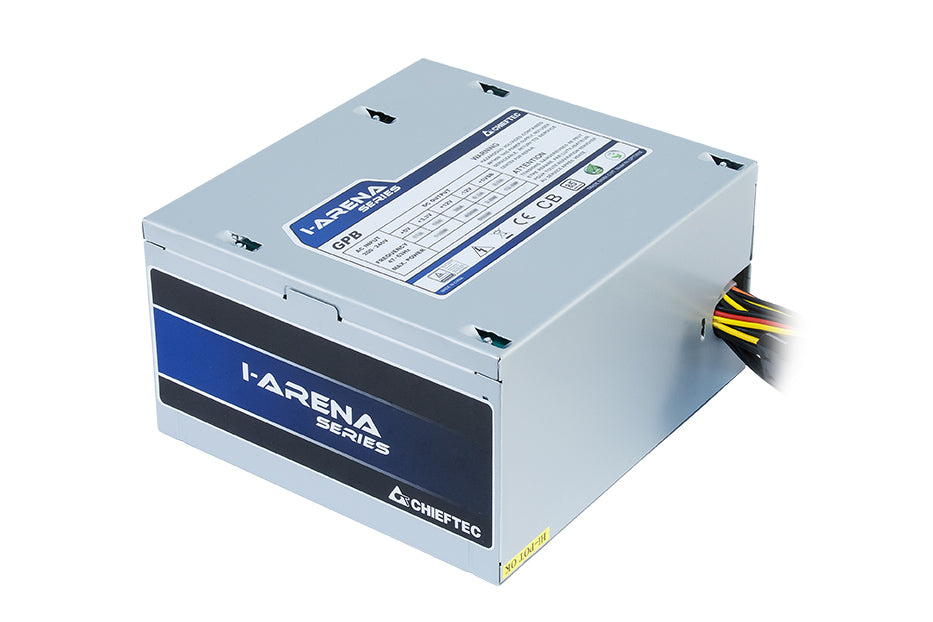

Chieftec GPB-350S. Total power: 350 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS
Chieftec
MBR CODE - GPB-350S
EAN - 4710713233614
