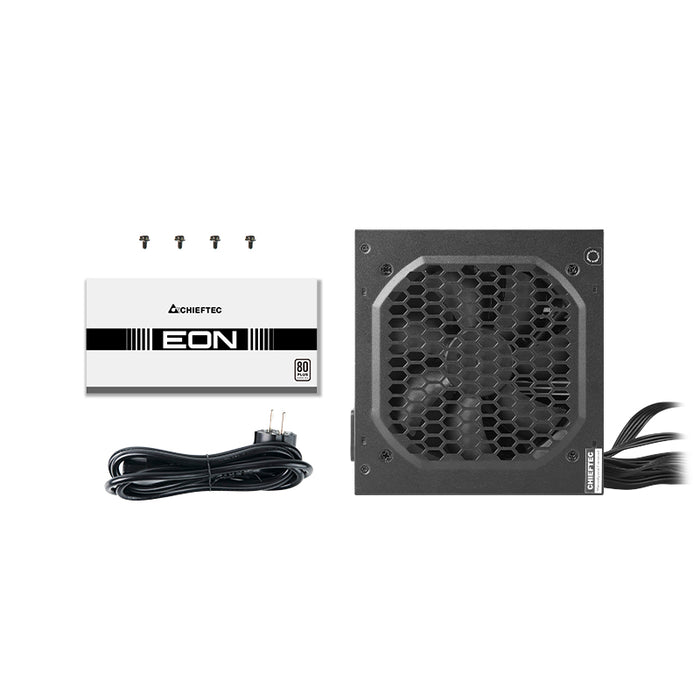

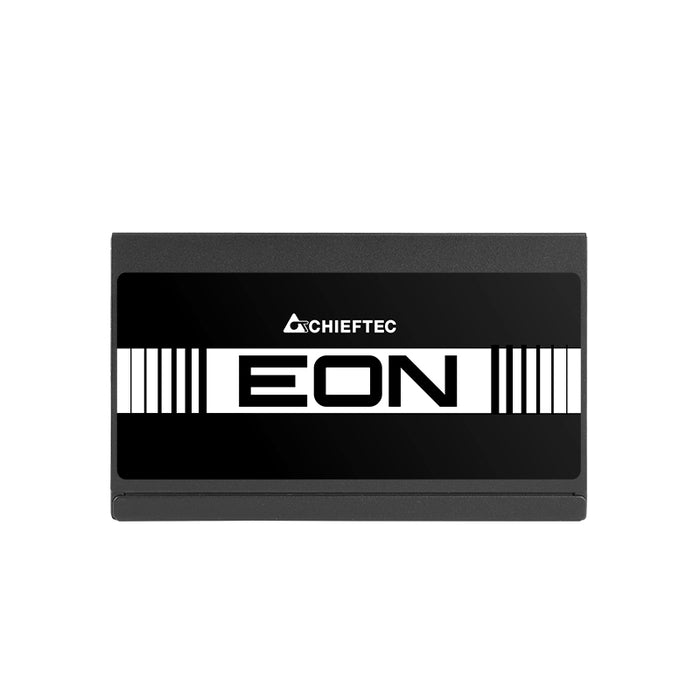

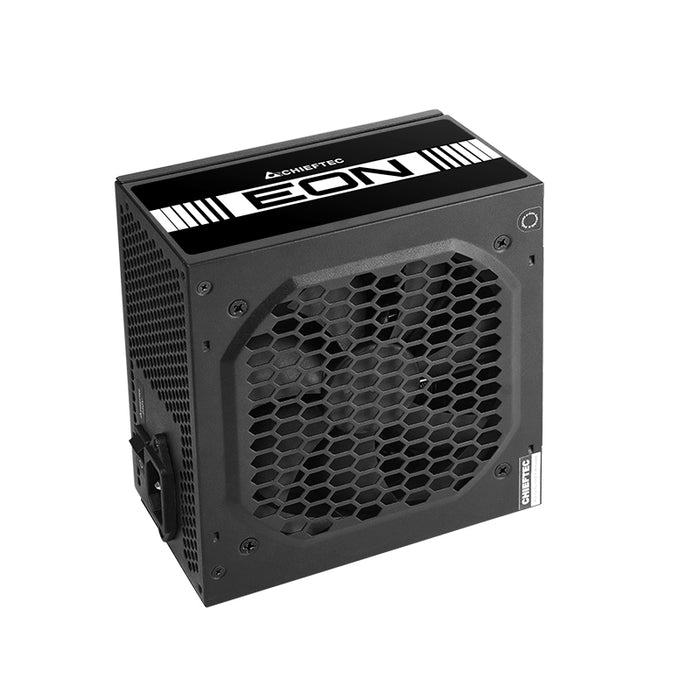

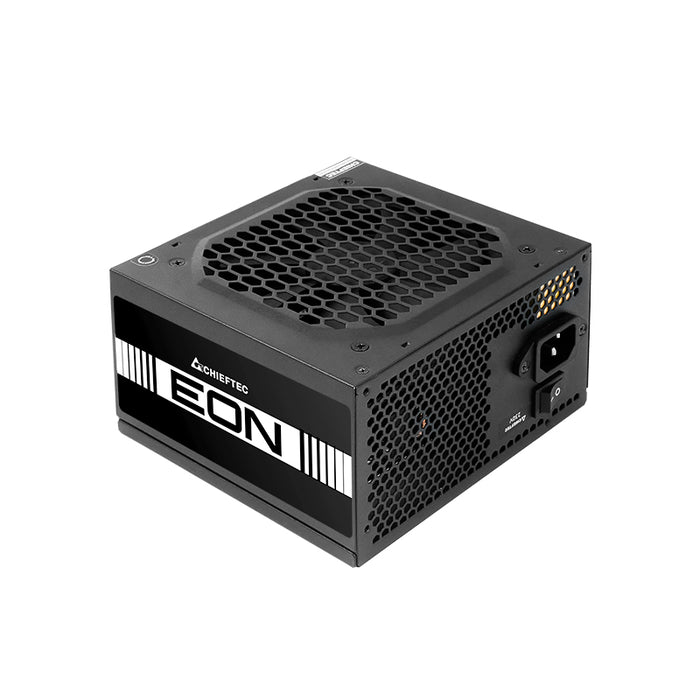

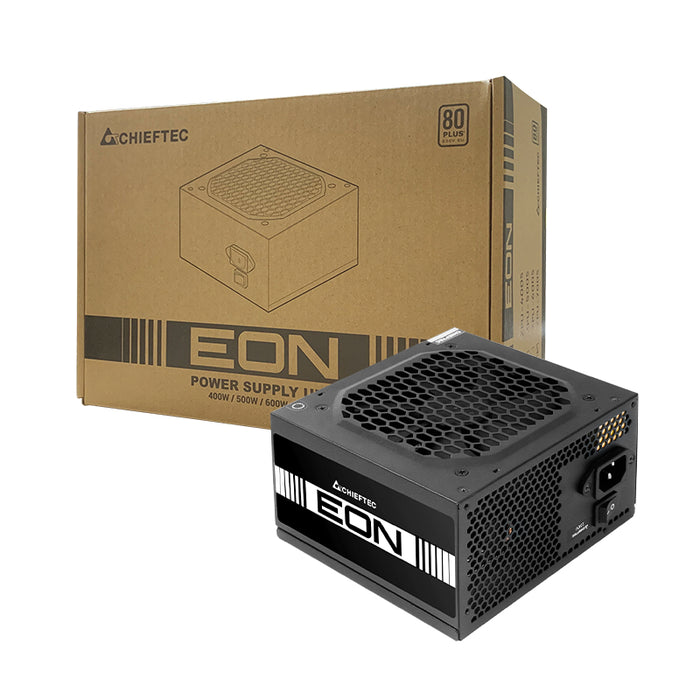

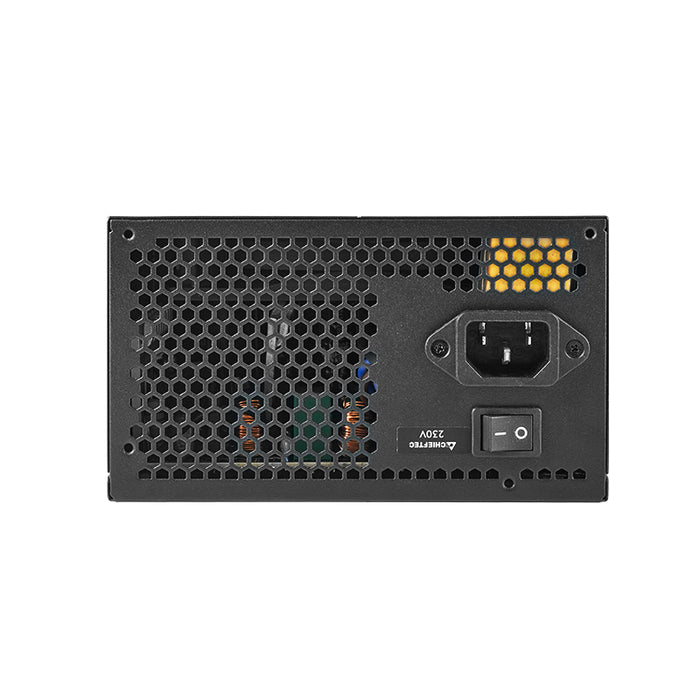

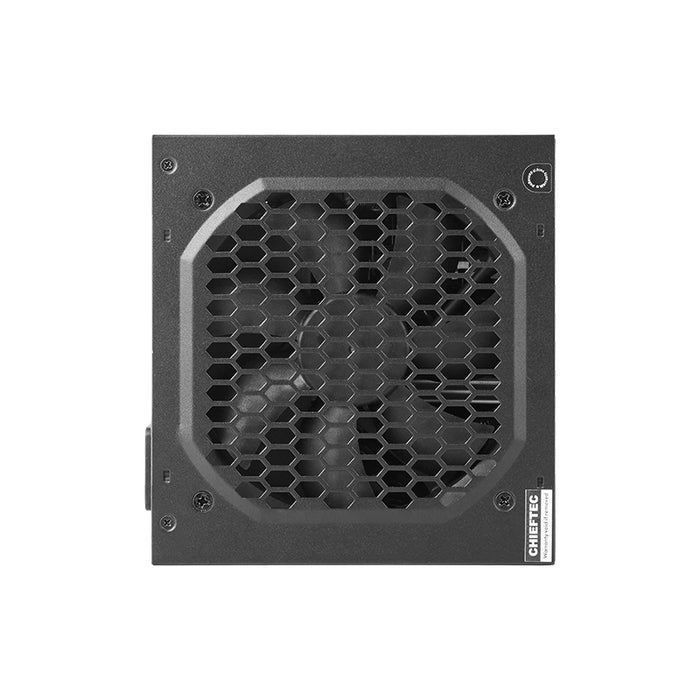

competitive pricing, equipped with silent 120mm fans.
The power supplies are fully built from steel, coated in elegant black, and
equipped with extra-long native cables. The EON Series runs quietly and provides
its power with all essential protection and safety features.
| Total power | 700 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 5.5 A |
| Maximum input current (@220V) | 5.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (-12V) | 4.8 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 53 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Surge and inrush, Surge protection, Short circuit |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 450,600,750 mm |
| Peripheral (Molex) power cable length | 450,600,750 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Supported motherboard form factors | ATX |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.4 kg |
| Warranty period | 2 year(s) |
