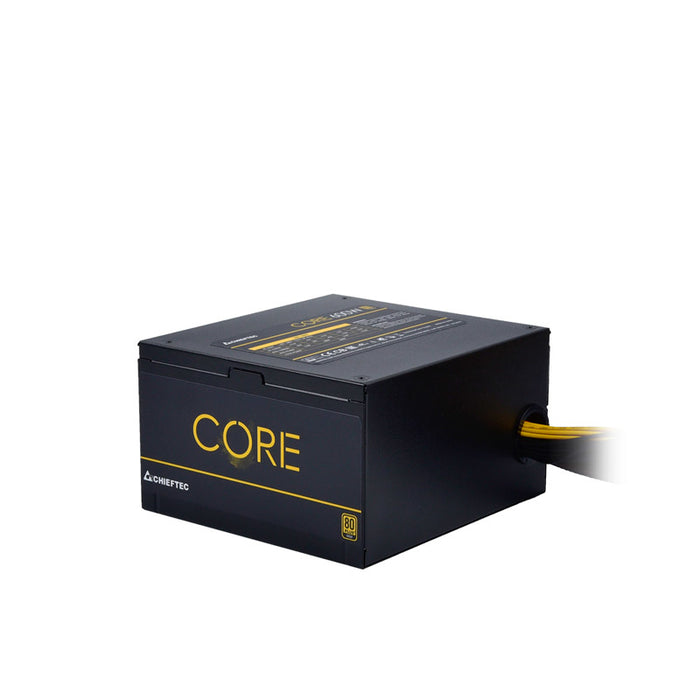

With the Core Series, Chieftec will be bringing a new 80 PLUS Gold certified PSU to market, offering the best possible value-formoney. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is idea for customers who want top-tier power output at the most attractive price.
Power
Total power: 600 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 9 A
Power Factor Correction (PFC) type: Active
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 49 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over voltage, Overload, Short circuit
Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 6
SATA power cable length: 150,500 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 150,500 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 50 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm
Floppy drive power connector: 1
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: PS/2
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Weight & dimensions
Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.67 kg
Packaging data
Package weight: 2.08 kg
Logistics data
Harmonized System (HS) code: 84733020
Chieftec Core BBS-600S. Total power: 600 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Chieftec
MBR CODE - BBS-600S
EAN - 0753263076137
