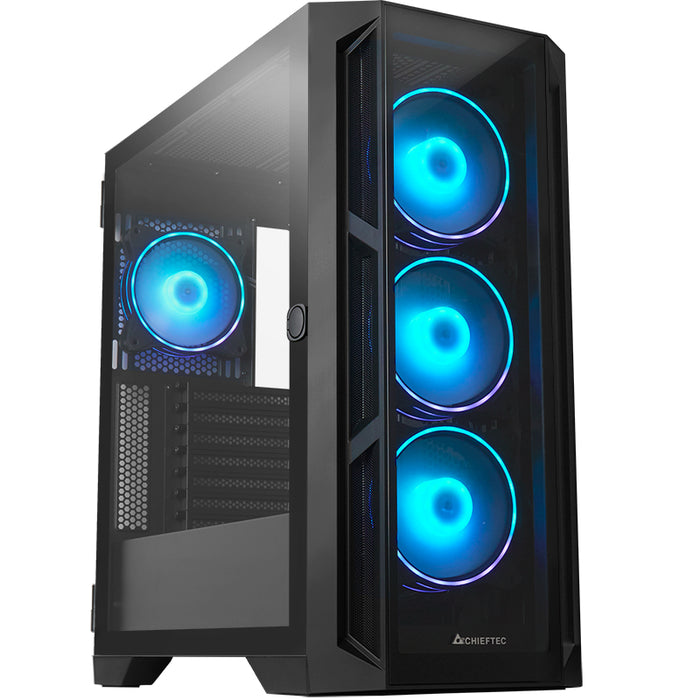

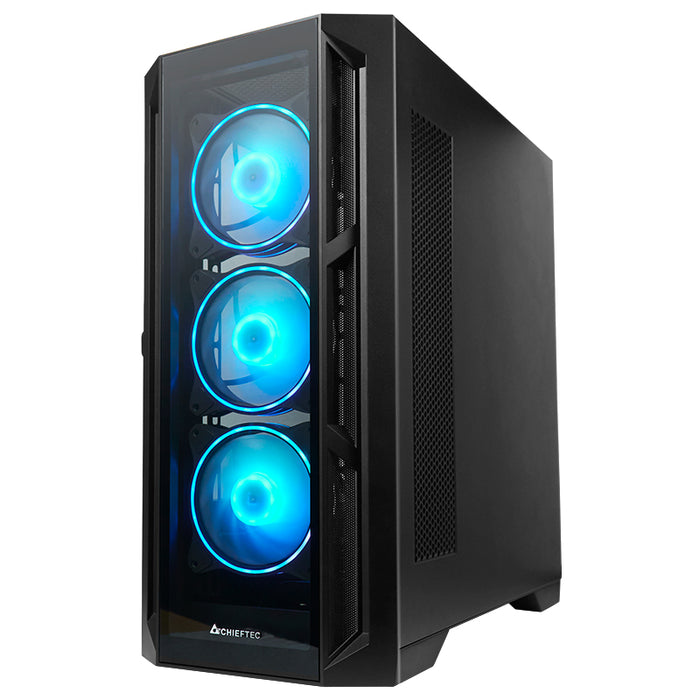

The CHIEFTEC APEX presents an E-ATX chassis with full clean tempered glass on the front and side panels, including four pre-installed 120mm ARGB fans that provide impressive style and cooling.

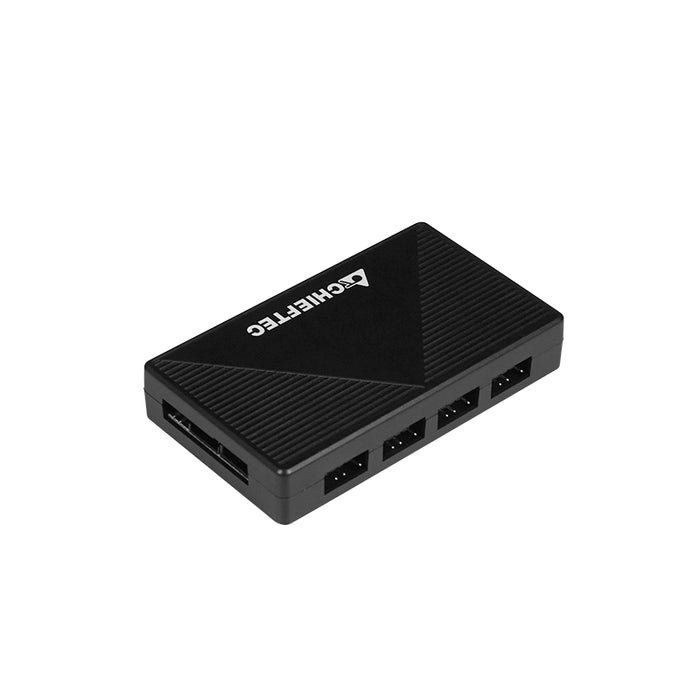

APEX with 4 pre-installed rainbow ARGB fans connected to a control hub that allows for ARGB M/B sync and fan speed control.

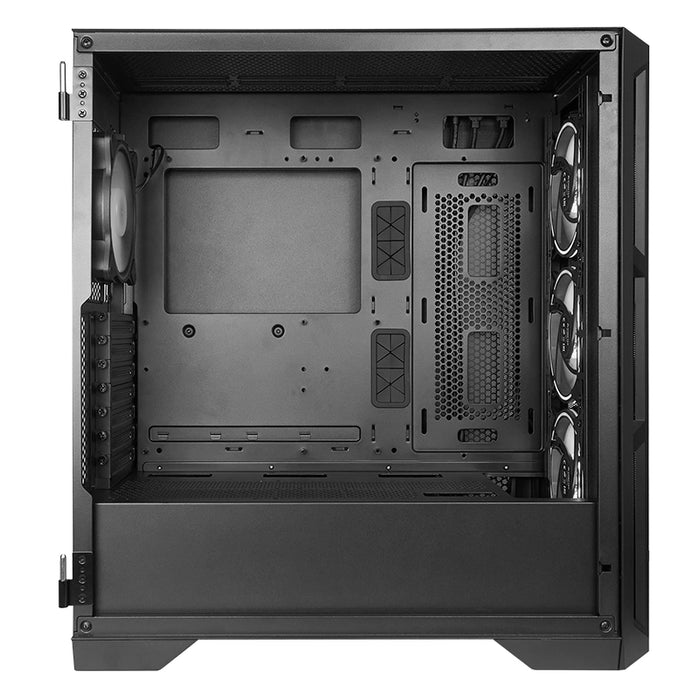

The case is generous with space, offering support for GPUs up to 400 mm in length, CPU coolers up to 175mm in height, and radiator support up to 360mm on the top and up to 420mm on the front.
CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to modern gaming systems.
Design
Material: SPCC
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, EATX, ITX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 3
Number of internal 3.5" bays: 2
Number of storage drives supported: 5

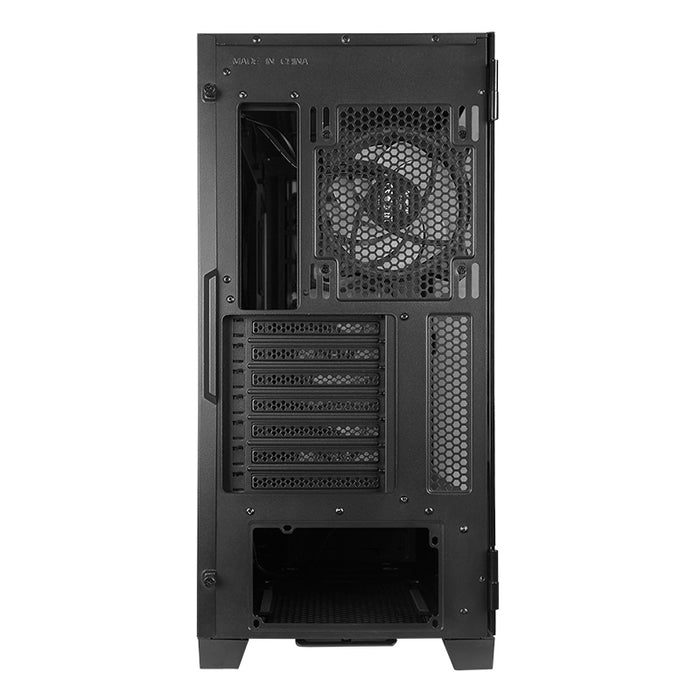

Number of expansion slots: 7
Full-Height expansion slots: 7
Feature: Side window
Suitable for: Gaming
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)

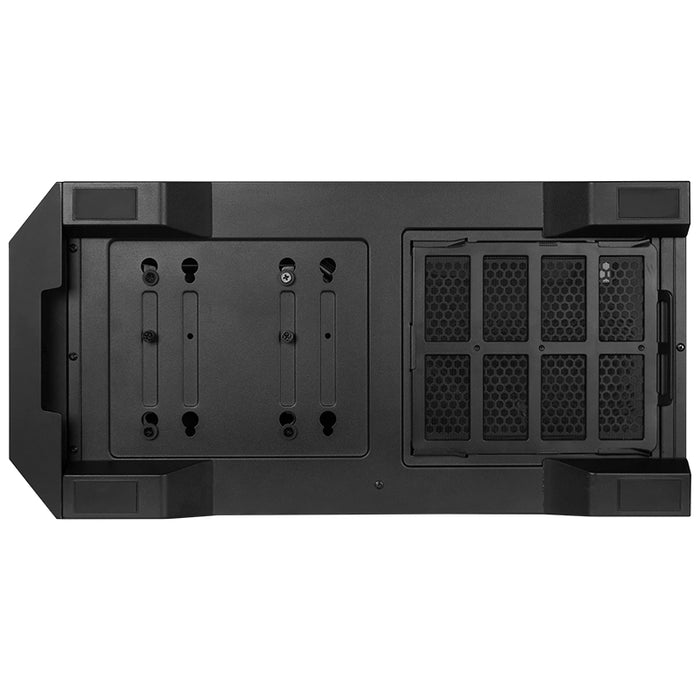

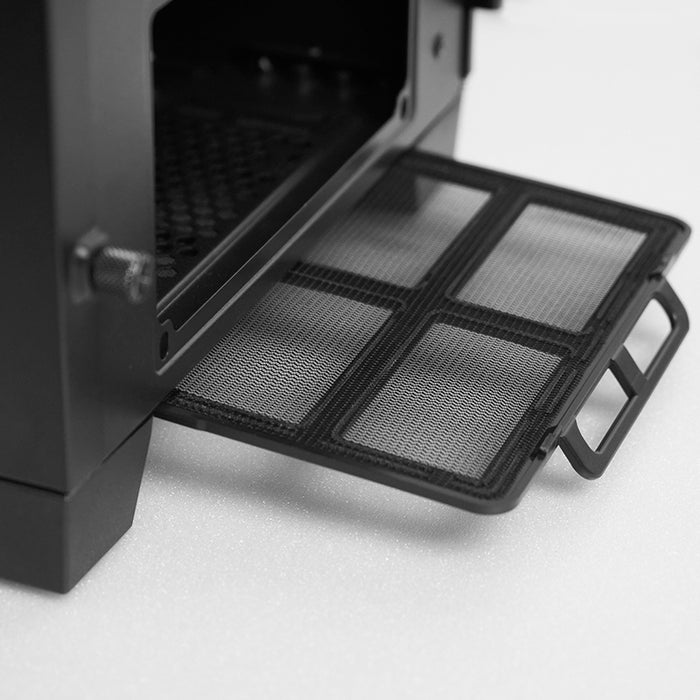

Feature: Anti-dust filter

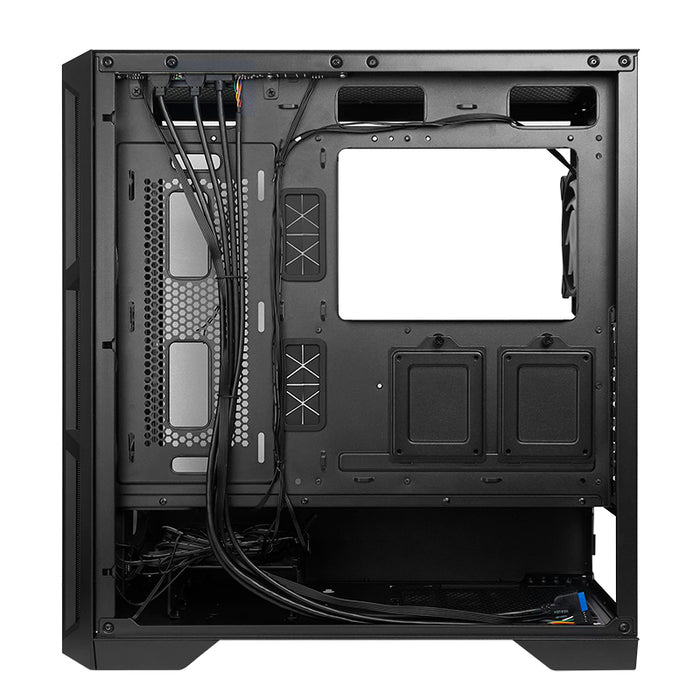

Feature: Cable management
Feature: Reset button
Feature: On/off button
Feature: RGB control button
Maximum CPU cooler height: 17.5 cm
Maximum graphics card length: 40 cm
Maximum PSU length: 22 cm
Power supply
Power supply location: Bottom

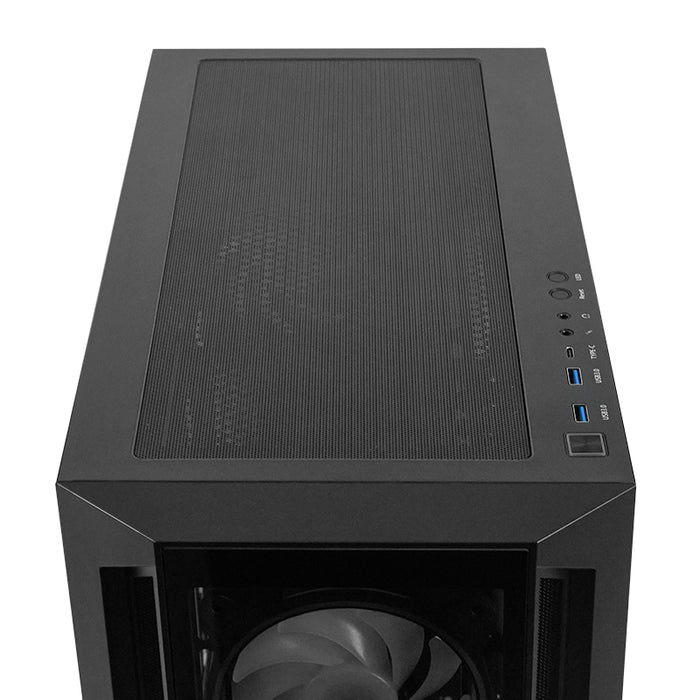

Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Cooling
Feature: Fan speed control

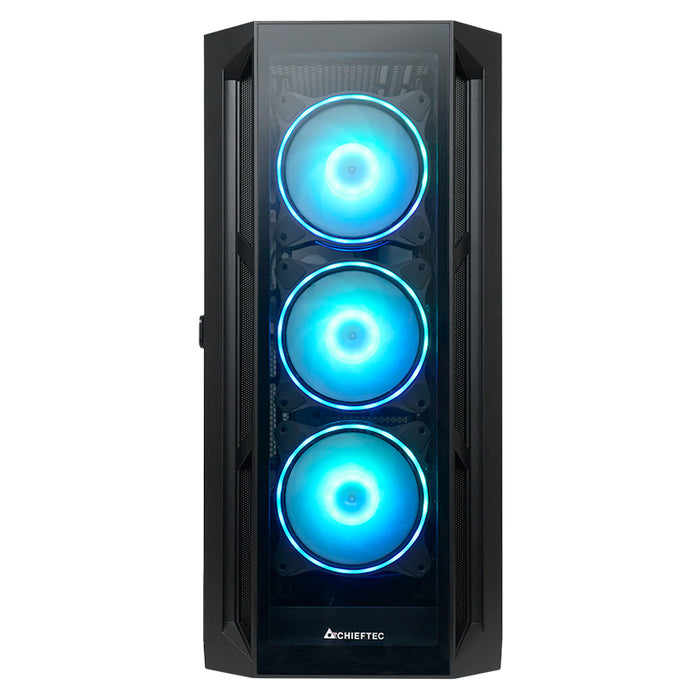

Front fans installed: 3x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Number of side fans supported (max): 2
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 120 mm
Feature: Liquid cooling capability
Front radiator sizes supported: 240,280,360,420 mm
Side radiator sizes supported: 240 mm
Top radiator sizes supported: 240,280,360 mm
Storage
Supported HDD sizes: 2.5,3.5"
Weight & dimensions
Width: 230 mm
Depth: 465 mm
Height: 495 mm
Weight: 8 kg
Material thickness: 0.6 mm
Packaging data
Feature: LED controller
Package weight: 9.5 kg
Chieftec APEX GA-01B-TG-OP ATX. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 230 mm, Depth: 465 mm, Height: 495 mm
Chieftec
MBR CODE - GA-01B-TG-OP
EAN - 0753263078520
