EXCEPTIONAL QUIET, SUPERIOR FEATURES
Pure Power 12 M 1200W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 12 M 1200W offers the best combination of features in its class.
Power
Total power: 1200 W
Peak power: 1250 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15 - 7.5 A
Power factor: 0.98
Combined power (+3.3V): 120 W
Combined power (+12V): 1200 W
Combined power (+5V): 120 W
Max output current (+3.3V): 22 A
Max output current (+12V1): 55 A
Max output current (+12V2): 50 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Hold time: 19 ms
Efficiency: 91.5%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under power, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
Number of PATA power connectors: 2
SATA power cable length: 500,650,800,950 mm
Peripheral (Molex) power cable length: 800,950 mm
Feature: EPS power connector (8-pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power cable length: 60 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 60 cm
Feature: ATX power connector (20+4 pin)
Feature: PCI Express connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Feature: Silent mode
Noise level: 34.3 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 2700 RPM
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Packaging content

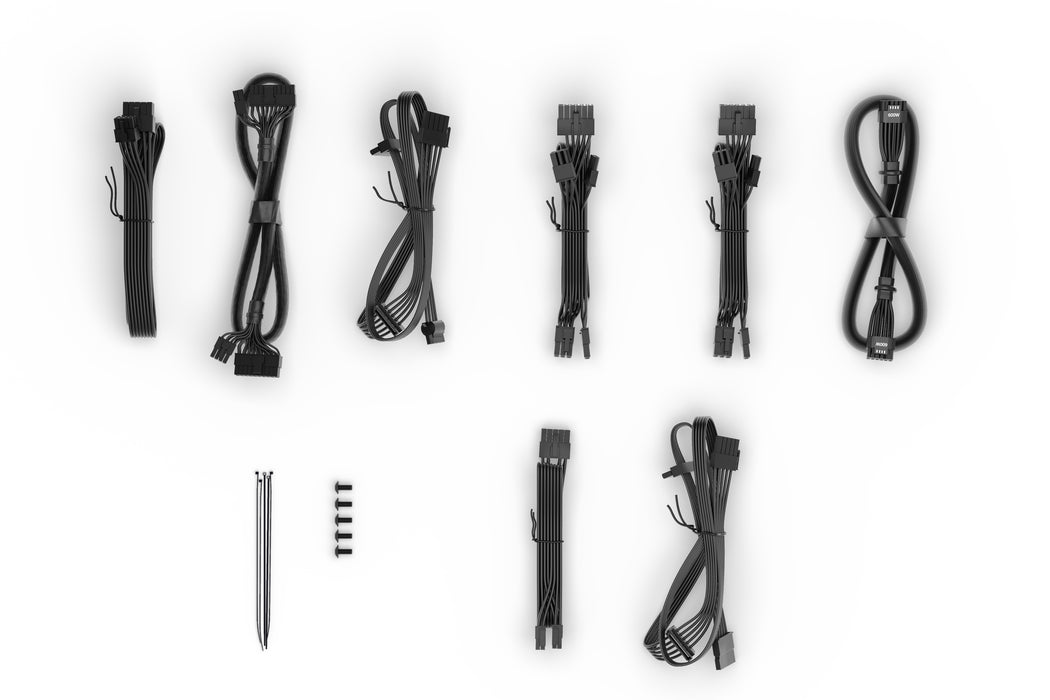

Cables included: AC, CPU, PATA, PCIe, SATA
Feature: Cable tie(s) included
Certificates
Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RoHS, cTUVus, UKCA, WEEE
Weight & dimensions
Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 1.92 kg
Packaging data
Package width: 220 mm
Package depth: 284 mm
Package height: 100 mm
Package weight: 3.19 kg
Package type: Box
Technical details
Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR, ErP, Triman
Logistics data
Shipping (inner) case length: 29.8 cm
Shipping (inner) case width: 42.6 cm
Shipping (inner) case height: 24.3 cm
Shipping (inner) case net weight: 12.7 kg
Products per shipping (inner) case: 4 pc(s)
be quiet! PURE POWER 12 M | 1200W. Total power: 1200 W, AC input voltage: 100 - 240 V, Peak power: 1250 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PATA, PCIe, SATA
Be Quiet!
MBR CODE - BN346
EAN - 4260052190166
