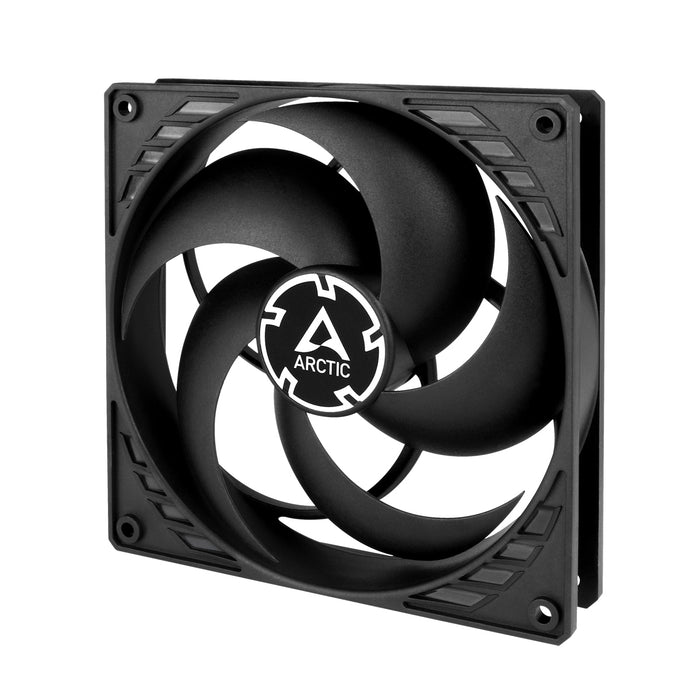

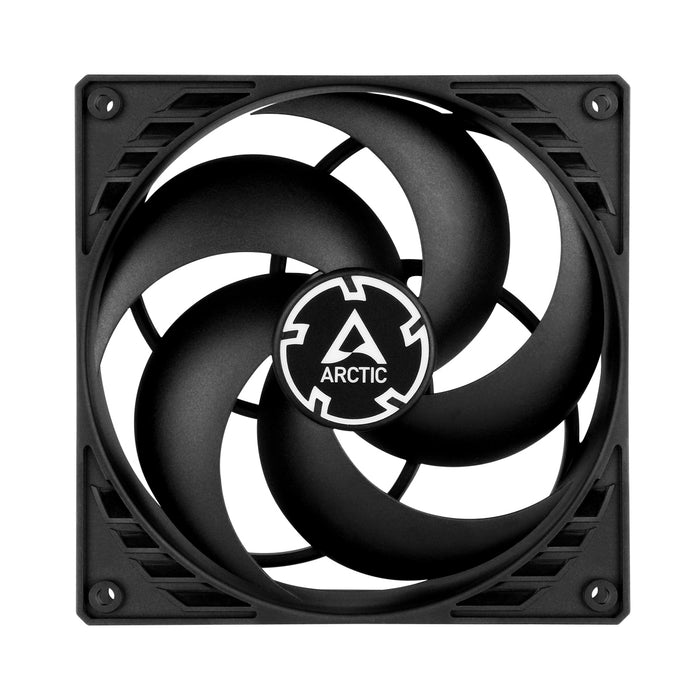

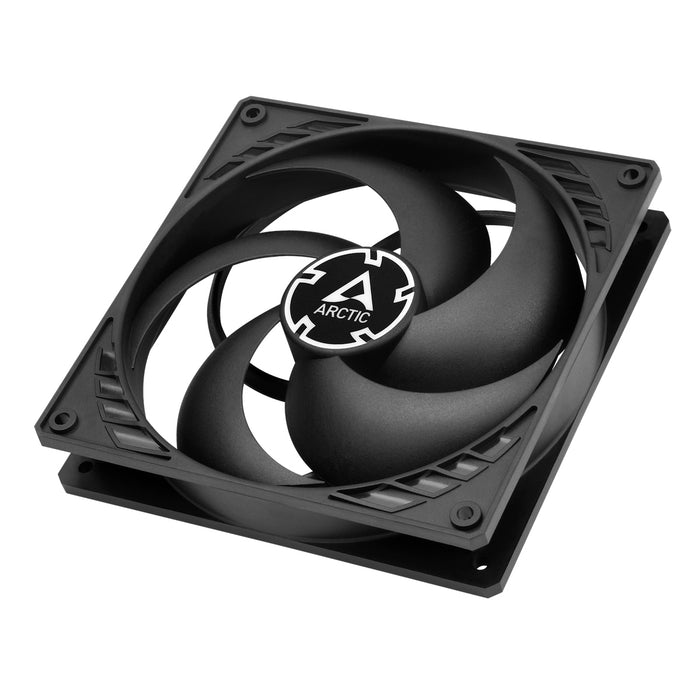

The P14 fan features completely redesigned fan blades and is optimised for high static pressure.
Thus, the P14 is especially effective when used on heatsinks and with higher air resistance.
Performance
Suitable location: Computer case
Type: Fan
Fan diameter: 14 cm
Supported processor sockets: Not supported
Compatible processor series: Not supported
Rotational speed (max): 1700 RPM
Noise level (high speed): 24.5 dB
Noise level: 0.3 sone
Maximum airflow: 72.8 cfm
Airflow: 123.76 m³/h
Bearing type: Fluid Dynamic Bearing (FDB)
Design
Product colour: Black
Number of fans: 1 fan(s)
Fan connector: 3-pin
Power
Voltage: 12 V
Starting voltage: 2.1 V
Rated current: 0.15 A
Weight & dimensions
Width: 140 mm
Depth: 140 mm
Height: 27 mm
Weight: 191 g
Cable length: 0.4 m
Package width: 143 mm
Package depth: 143 mm
Package height: 29 mm
Package weight: 227 g
Packaging content
Package type: Box
Feature: Screws included
Number of screws: 4
Other features
Country of origin: China
Logistics data
Harmonized System (HS) code: 84733080
ARCTIC P14 – Pressure-optimised 140 mm Fan. Type: Fan, Fan diameter: 14 cm, Rotational speed (max): 1700 RPM, Noise level: 0.3 sone, Airflow: 123.76 m³/h, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 140 mm, Depth: 140 mm, Height: 27 mm. Product colour: Black
ARCTIC
MBR CODE - ACFAN00123A
EAN - 4895213701549
