The TX-2202A White touch screen monitor utilises PCAP multi-touch technology, which is minimally affected by contamination. It offers 10-point multi-touch capability for an accurate and responsive touch experience, including responsiveness to latex gloves. Featuring a medical-grade power supply and versatile connectivity options (such as DisplayPort, HDMI, and VGA inputs), the TX-2202A White is ideal for uses like medical carts or information kiosks in healthcare settings. The screen is further enhanced by its IP65 and IK08 ratings, metal casing, and an edge-to-edge 7H tempered glass design, ensuring durability for continuous use in clinical environments.
10-Point PCAP Touch Screen
The TX-2202A White touch screen incorporates PCAP touch technology, offering a 10-point multi-touch capability that remains unaffected by contamination. This results in a fast, accurate, and responsive touch experience, comparable to that of smartphones and tablets, and is responsive even when wearing latex gloves.
Enhanced Safety with Medical-grade Power Supply
Compliance with IEC/EN 60601-1 standards for power supplies ensures the safety of staff and patients in clinical settings by preventing electric shocks and reducing energy-related and heat-related hazards.
Front IP65 Dust and Water Protection
The TX-2202A White’s multi-touch monitor features a front-sided IP65 rating, protecting against dust and liquid spills, making it ideal for high-traffic public areas.
Impact-Resistant Against Vandalism
With an IK08 rating and a metal casing, the touch display is protected against impacts and acts of vandalism, ensuring a long service life in high-traffic areas.
Ergonomic Monitors with Flexible Mounting
The TX-2202A White 22” 10-point touch screen monitor is VESA compatible, offering various mounting options, including desk, wall, or monitor arm mounting. The included ergonomic stand allows for a wide tilt range of -2 to 180 degrees, enhancing ergonomics during use.
Seamless integration
Touch support is compatible with various operating systems, including Windows, Linux, macOS, and certain Android versions. This allows for greater flexibility in choosing your operating system.

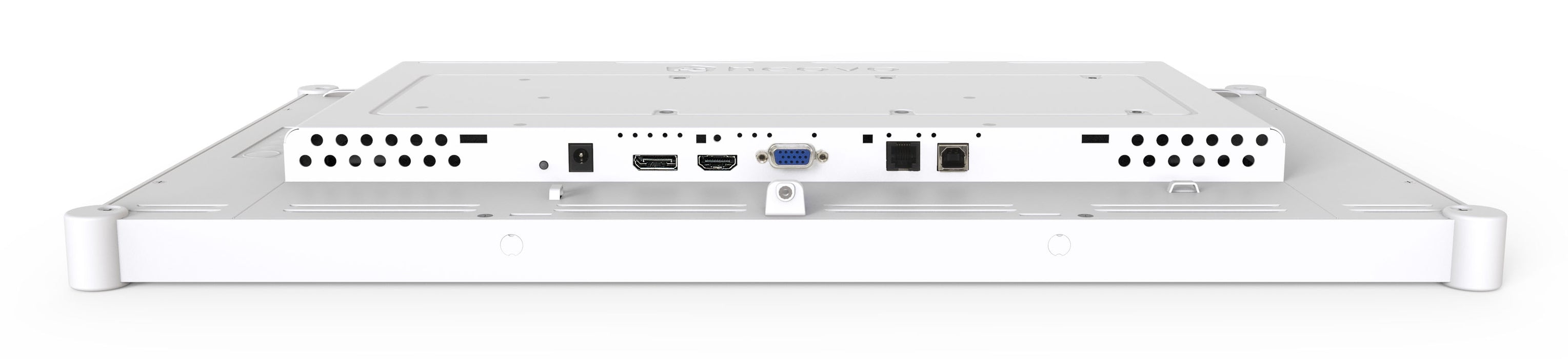

Versatile Connectivity
The TX-2202A White offers a range of connectivity options, making it easy for users to connect their devices, such as high-performance PCs or media players, using DisplayPort, HDMI, or VGA inputs.
Display
Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: VA
Feature: Touchscreen
Touchscreen technology: Capacitive
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 250 cd/m²
Response time: 5 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.248 x 0.248 mm
Horizontal scan range: 30 - 84 kHz
Vertical scan range: 50 - 76 Hz
Haze rate: 25%
Surface hardness: 7H
Performance
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Other operating systems supported: Android
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Medical
Product colour: White
Housing material: Metal
Glass thickness: 2.05 mm
Ports & interfaces
USB upstream port type: USB Type-B
Number of USB Type-B upstream ports quantity: 1
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
Feature: Audio input
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Tilt angle range: -5 - 90°
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 15 kWh
Power consumption (typical): 15 W
Power consumption (standby): 0.7 W
Power consumption (off): 0.3 W
Power supply type: External
European Product Registry for Energy Labelling (EPREL) code: 1372216
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
Width (with stand): 528.6 mm
Depth (with stand): 214.2 mm
Height (with stand): 346.7 mm
Weight (with stand): 6.7 kg
Width (without stand): 528.6 mm
Depth (without stand): 48.5 mm
Height (without stand): 324.3 mm
Weight (without stand): 4.8 kg
Packaging data
Package width: 610 mm
Package depth: 320 mm
Package height: 460 mm
Package weight: 9.8 kg
Packaging content
Cables included: AC, Audio, HDMI, USB, VGA
Feature: Power adapter included
Feature: Quick start guide
Sustainability
Feature: Sustainability compliance
Other features
International Protection (IP) code: IP65
Protection features: Dust resistant, Waterproof
Transmission rate: 90%
Compliance certificates: CE, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
AG Neovo TX-2202A. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: White
AG Neovo
MBR CODE - TX2A00A1E0000
EAN - 4710739597974
