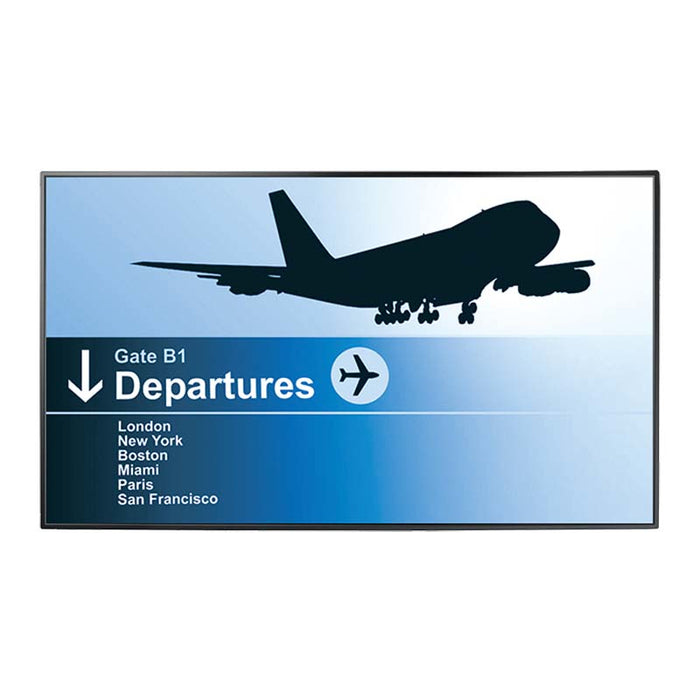

The PD-43Q 43-inch 4K commercial display features its 700 nits high brightness, suitable for use in different semi-outdoor environments, such as airport terminals, control rooms, and shopping malls. It integrates a full slate of input sources, including an embedded USB playback function, various I/O ports, and Intel® SDM slot. It allows you to broadcast multimedia content horizontally or vertically and it can meet different kinds of digital signage solutions as well as video wall installations.
700 nits High Brightness
The PD-43Q commercial display features 4K UHD, 10-bit colour depth, and 178-degree viewing angle for brilliant colour performance. Besides that, the display adopts a 700 nits brightness commercial-grade panel to deliver clear, bright, and detailed imagery even in the daylight or bright indoor environments.
IPS Panel for 24/7 Use
Designed for 24/7 operation, the PD-43Q 4K commercial display is produced to meet the highest standard of IPS panel technology and take advantage of superior components to ensure a long product lifetime in demanding environments.
Landscape/Portrait Capability
The PD-43Q is digital signage-friendly and can perfectly fit either in a landscape or in a portrait mode to experience complete screen orientation flexibility and fulfill the need in different scenarios.
Optional Intel® SDM Capability
The built-in SDM slot is designed for Intel® smart display module, which is ready to create powerful smart signage for more user-friendly applications.
DisplayPort/IR/RS232 Daisy Chain Functionality
With DisplayPort daisy chain functionality, the video and audio can be delivered to multiple commercial-grade displays using DisplayPort cables, and it saves a significant amount of time. IR/RS232 loop-through capability provides a convenient single point of control for multi-display installation.
Embedded Image Enhancer
The embedded image enhancer features a 3D Comb Filter, 3D Deinterlace, and Noise Reduction to solve image issues – offering crystal clarity to the most demanding environments.
Integrated Content Scheduler
The built-in integrated scheduler in the OSD menu allows you to easily broadcast content based on source, time, and day by IR remote control.
Patented Anti-Burn-in™ Technology
To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.
PID Command & Ctrl Software
PID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers easy creation on video wall displays. The software also has simple colour calibration, temperature check, IR/key locking options, and time on usage monitoring for daily maintenance.
Display
Feature: LED backlight
Display diagonal: 108 cm (42.5")
Display technology: IPS
Display resolution: 3840 x 2160 pixels
Display brightness: 700 cd/m²
HD type: 4K Ultra HD
Response time: 5 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.245 x 0.245 mm
Number of displays: 1
Horizontal scan range: 31 - 92 kHz
Vertical scan range: 48 - 85 Hz
Haze rate: 25%
Surface hardness: 3H
Colour gamut: 72%
Ports & interfaces
HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 3
Feature: DVI port
DVI-I ports quantity: 1
DisplayPorts quantity: 2
DisplayPorts in: 1
DisplayPorts out: 1
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232 interface
Feature: Infrared data port
Remote (IR) input: 1
Remote (IR) output: 1
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Feature: Anti-glare screen
Performance
Purpose: Commercial
Operating hours (hours/days): 24/7
Power
Power consumption (typical): 123 W
Power consumption (standby): 0.5 W
Power consumption (off): 0 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 123 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G
Weight & dimensions
Display width: 973 mm
Display depth: 63.5 mm
Display height: 561.2 mm
Display weight: 10.7 kg
Packaging data
Package width: 1070 mm
Package depth: 141 mm
Package height: 680 mm
Package weight: 13.1 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 90%
Certificates
Certification: FCCCELVDICES-003(Issue 7)WEEERoHSREACH
Logistics data
Harmonized System (HS) code: 85285210
Features
Feature: Wall mountable
Technical details
I/O ports: SDM Slot
Compliance certificates: RoHS
Other features
Feature: Quick start guide
Audio input: 1
Audio output: 1
RS-232 input ports: 1
RS-232 output ports: 1
AG Neovo 43-Inch 4K Commercial Display. Product design: Digital signage flat panel. Display diagonal: 108 cm (42.5"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 700 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black
AG Neovo
MBR CODE - PD43Q011M000
EAN - 4710739596830
